Connector

4-pin industrial DC power socket

Input power/max charging current

Charger: max 4 W / 300 mA (max battery charging current)

Input voltage range

9 – 30 VDC

Input protection

Reverse polarity protection, Overvoltage protection

Output voltage in passthrough mode

9 – 30 VDC

Output voltage in battery mode

12 VDC

Output protection

3 A overcurrent protection

Max output power/current in battery mode

22 W / 1.8 A

Battery capacity

2600 mAh 17 Wh

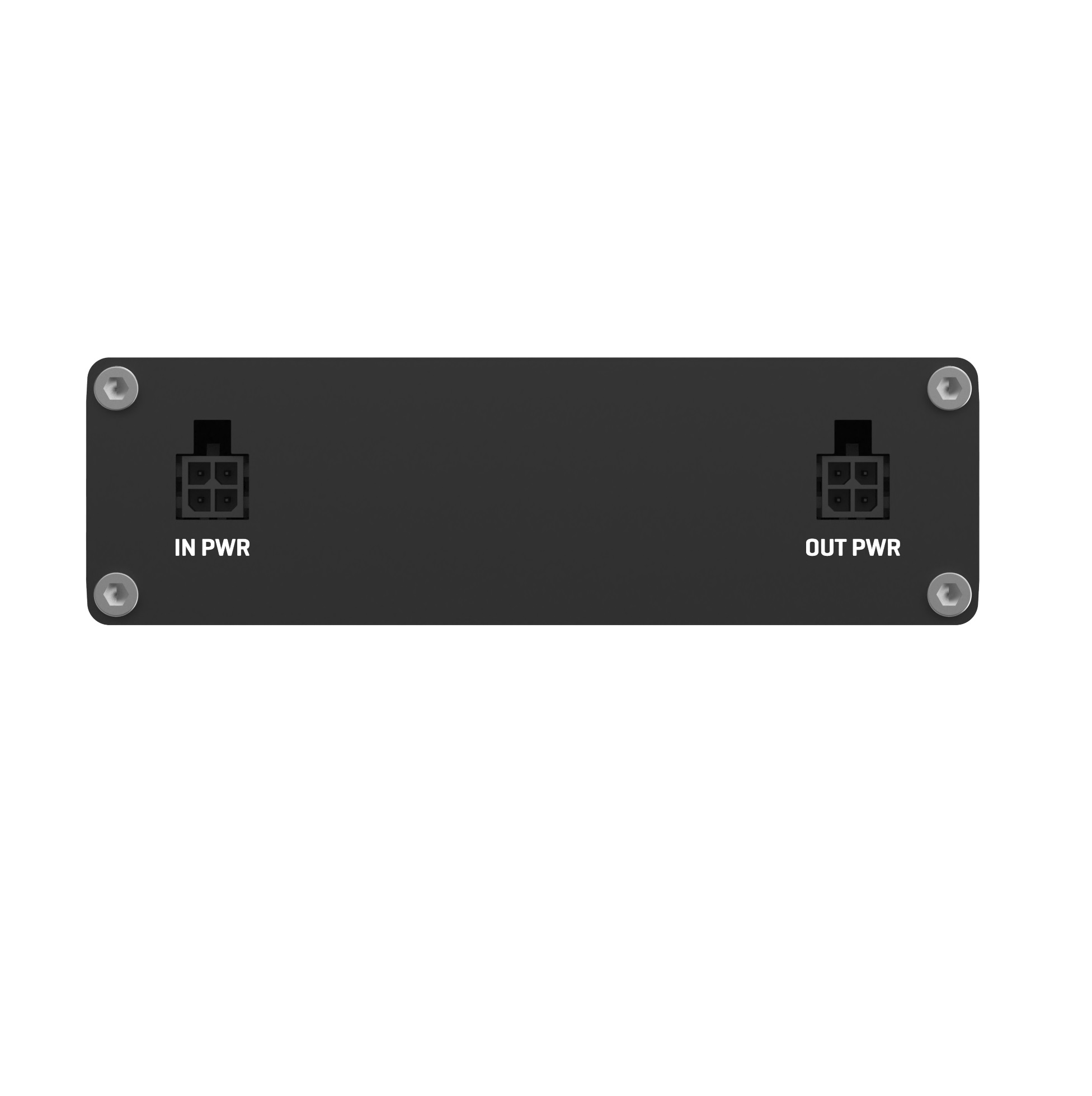

Power IN

1x 4-pin DC connector

Power OUT

1x 4-pin DC connector

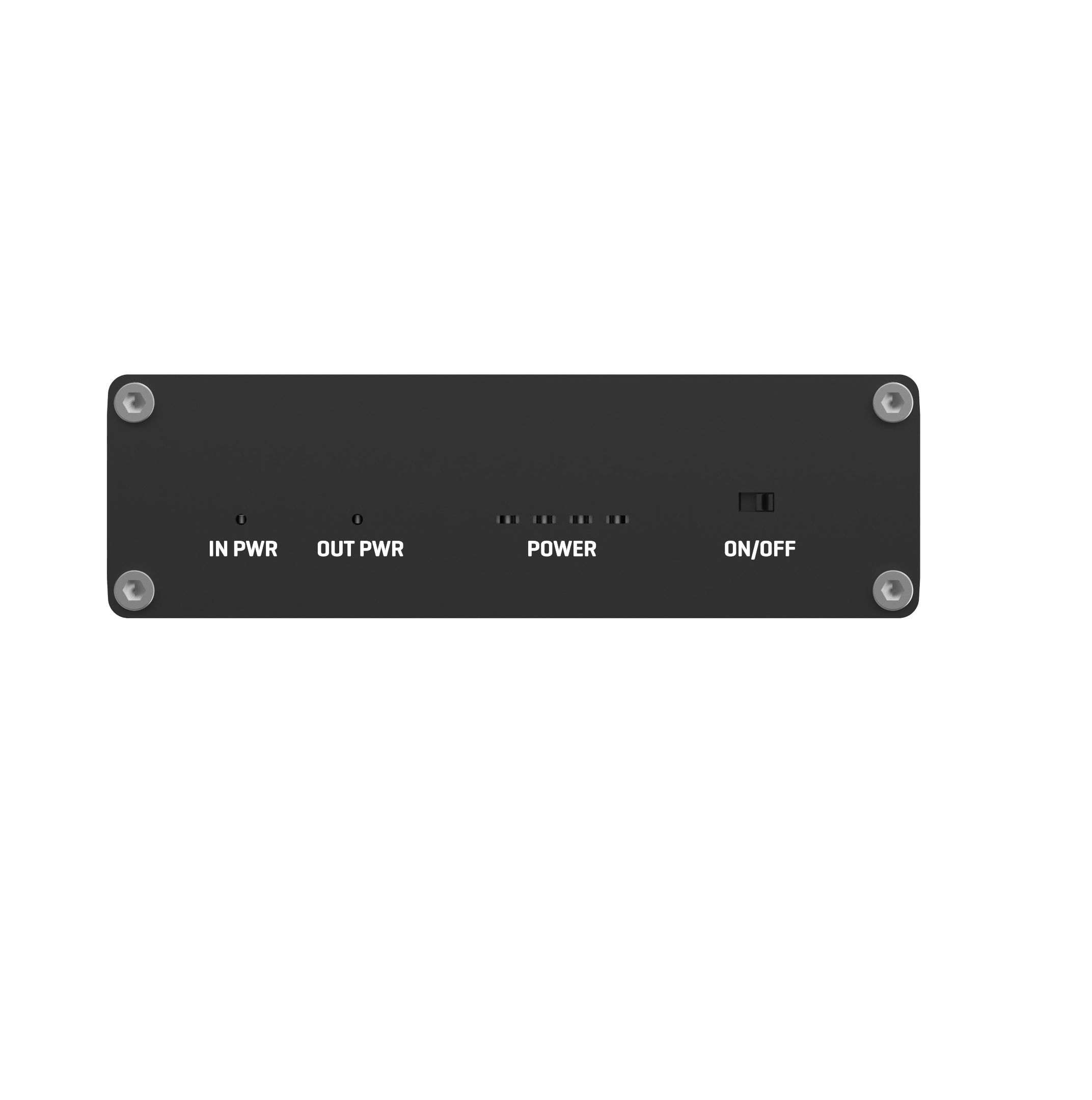

Status LEDs

1x IN PWR LED, 1x OUT PWR LED, 4x Power status LEDs

Switch

On/Off slider switch

Alarm Output

1x Active HIGH output, max output 12 V, 2.5 mA

Lithium cells

2x 18650 Li-Ion cells

Compatible devices

RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100

Casing material

Aluminum housing

Dimensions

100 x 30 x 85 mm

Weight

315g

Mounting options

DIN Rail, flat surface placement

Operating temperature

0 °C ~ 45 °C

Regulatory

CE/RED, UKCA, EAC
