Teltonika FMB125 | TKC

Teltonika FMB125

Замовити

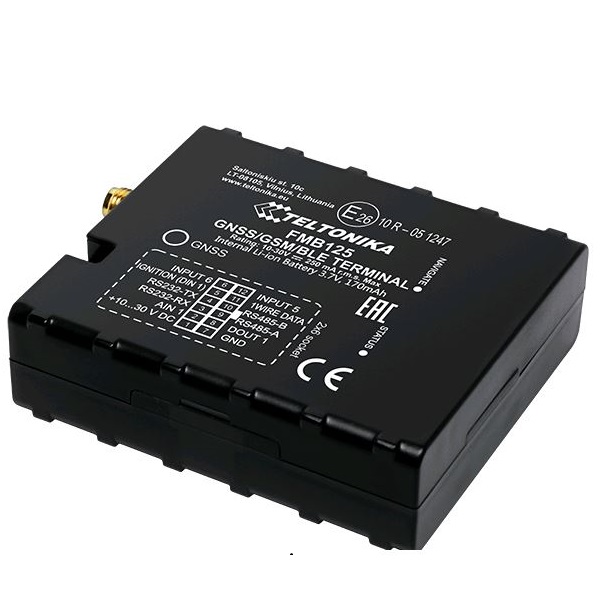

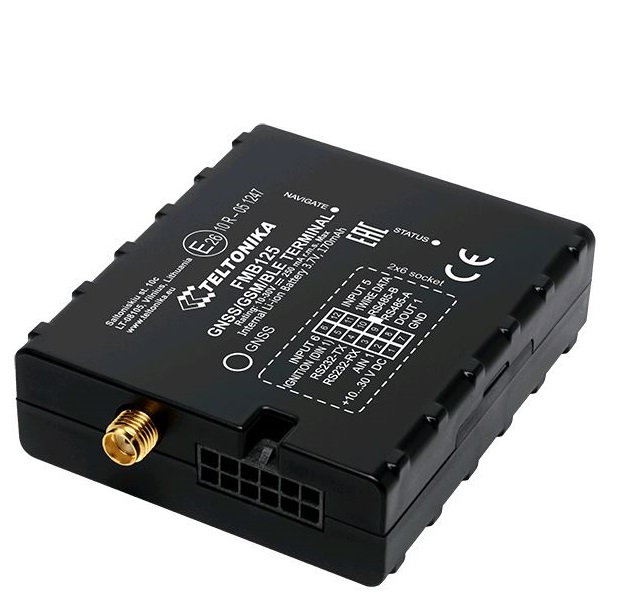

Teltonika FMB125 GPS трекер

Stuff

Зображення

Технічні характеристики

GSM:

Quad-band 900/1800 MHz; 850/1900 MHz
GPRS Multi-Slot Class 12 (up to 240 kbps)
GPRS Mobile Station Class B
SMS (text/data)
Dual-SIM (1 x micro SIM card, 1 x eSIM)

Bluetooth:

Bluetooth specification V4.0
Bluetooth transceiver fully compliant with Bluetooth specification V4.0 for external peripherals:
- Voice calls over Bluetooth
- Configuration via Bluetooth
- OBDII Bluetooth dongle

GNSS:

Tracking: 33/ 99 acquisition channels
-165 dBM sensitivity
Hot start <1s
Warm Start < 25s
Cold start < 35s
NMEA-183 protocol
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Accuracy < 3m

INTERFACE:

1 Digital Input
1 Analog Input (10V or 30V range)
1 Digital Open-collector Output (connecting external relays, LED, buzzers etc.)
1-Wire® (iButton® , RFID, temperature sensors)
RS232
RS485
Motion sensor
Built in accelerometer
Power supply (+10…+30) V DC
Internal high gain GSM antenna
External GNSS antenna (SMAconnector)
Dimensions: L(65mm) x W(56,6mm) x H(18,9mm)
2 Status LEDs
Micro USB Port
Integrated LiPo back-up battery

Завантаження

Додаткові файли:

Краткое описание Teltonika FMB125

Инструкция Teltonika FMB125

Программа настройки трекеров FMB

Teltonika FMB драйвер
