1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT

Ping Reboot, Wget Reboot, Periodic Reboot

Visual representation of your network, showing which devices are connected to which other devices

Supported >77 service providers, others can be configured manually

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Flexible access control of SSH, Web interface, CLI and Telnet

Port-based network access control client

Server - Receive time from GPS and act as a NTP server to broadcast time for other devices (Stratum 1). Broadcast time through UDP or over Serial (RS232, RS485)

TCP/UDP

RS232/RS485

NTPv4, NTP authentication (MD5/SHA1), Unicast/Multicast/Broadcast mode

NTP Stratum 1 Time Server (NTPv4)

Ethernet NTP ±1ms overall

>300 NTP requests per second (wire speed)

LAN synchronization typically 1–10ms

Server, Client

RTU (RS232, RS485), TCP

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Allows sending commands and receiving data from MODBUS Server through MQTT broker

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

SSH (v1, v2)

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

Management API over HTTP/HTTPS

MODBUS TCP status/control

Mediatek, 580 MHz, MIPS 24KEc

128 MB, DDR2

16 MB, NOR Flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW without losing current configuration

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

RutOS (OpenWrt based Linux OS)

Busybox shell (ash), Lua 5.1, C, C++

SDK package with build environment provided

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Acquisition Sensitivity -146 dBm, Reacquisition Sensitivity -157 dBm, Tracking Sensitivity -157 dBm

GPS 1575.42 ±1.023 MHz, GLONASS 1597.5–1605.8 MHz, Galileo 1575.42 ±2.046 MHz, BDS 1561.098 ±2.046 MHz

Cold GPS acquisition in <120 seconds

Terminal block connector: TX, RX, RTS, CTS

Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)

3 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

3 x Digital Output, Open collector output, max output 30 V, 300 mA

2-pin in 16-pin industrial terminal block

9 - 30 VDC, Overvoltage protection, Reverse polarity protection, Surge protection +/- 1kV 50 uS Max

Idle: < 2 W, Max: < 3.5 W

1 x RJ45 ports, 10/100 Mbps

3 x Configurable I/O, 1 x Analog input in 16-pin terminal block

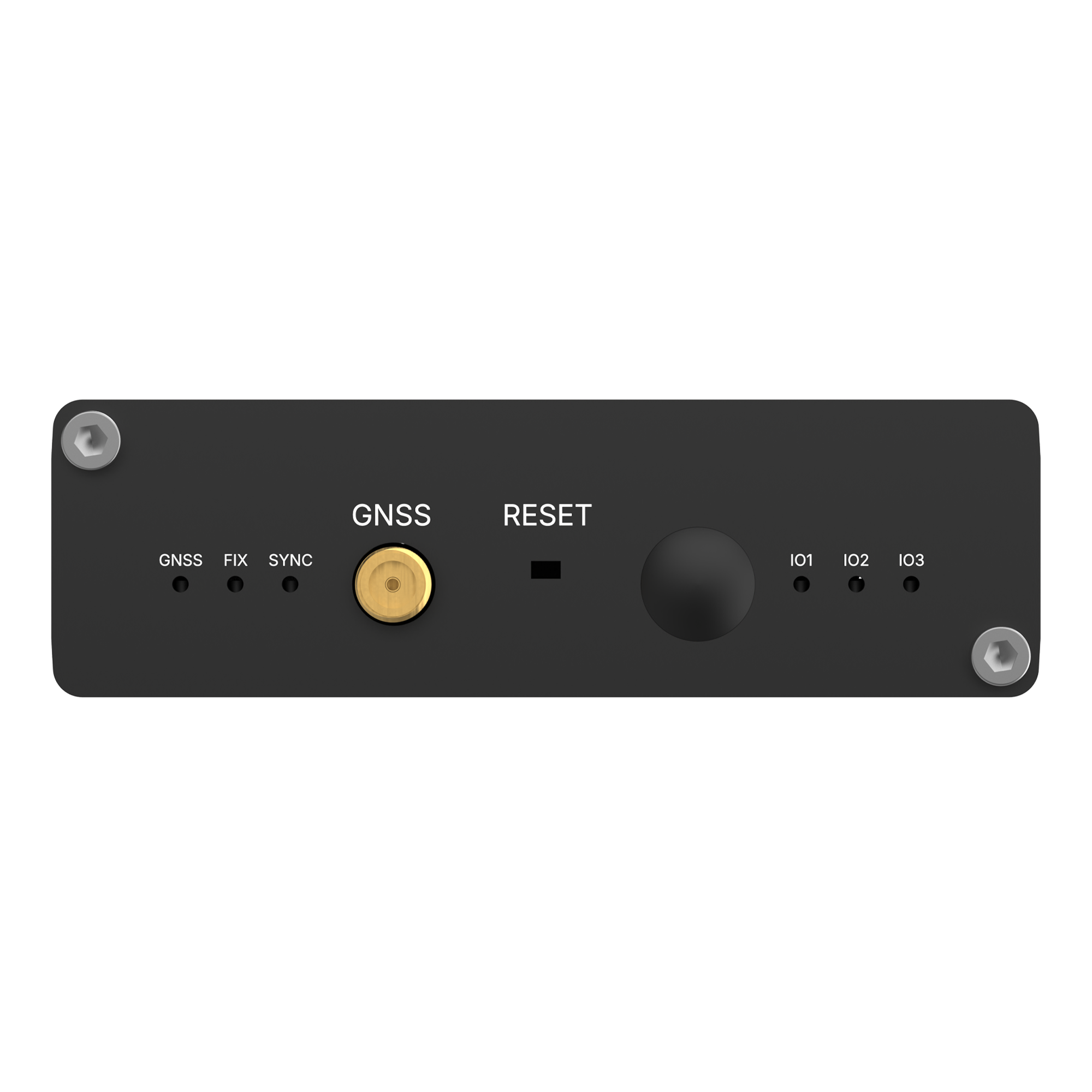

1 x Power, 2x GNSS status LEDs, 1x NTP Server status LED, 3 x IO status LEDs

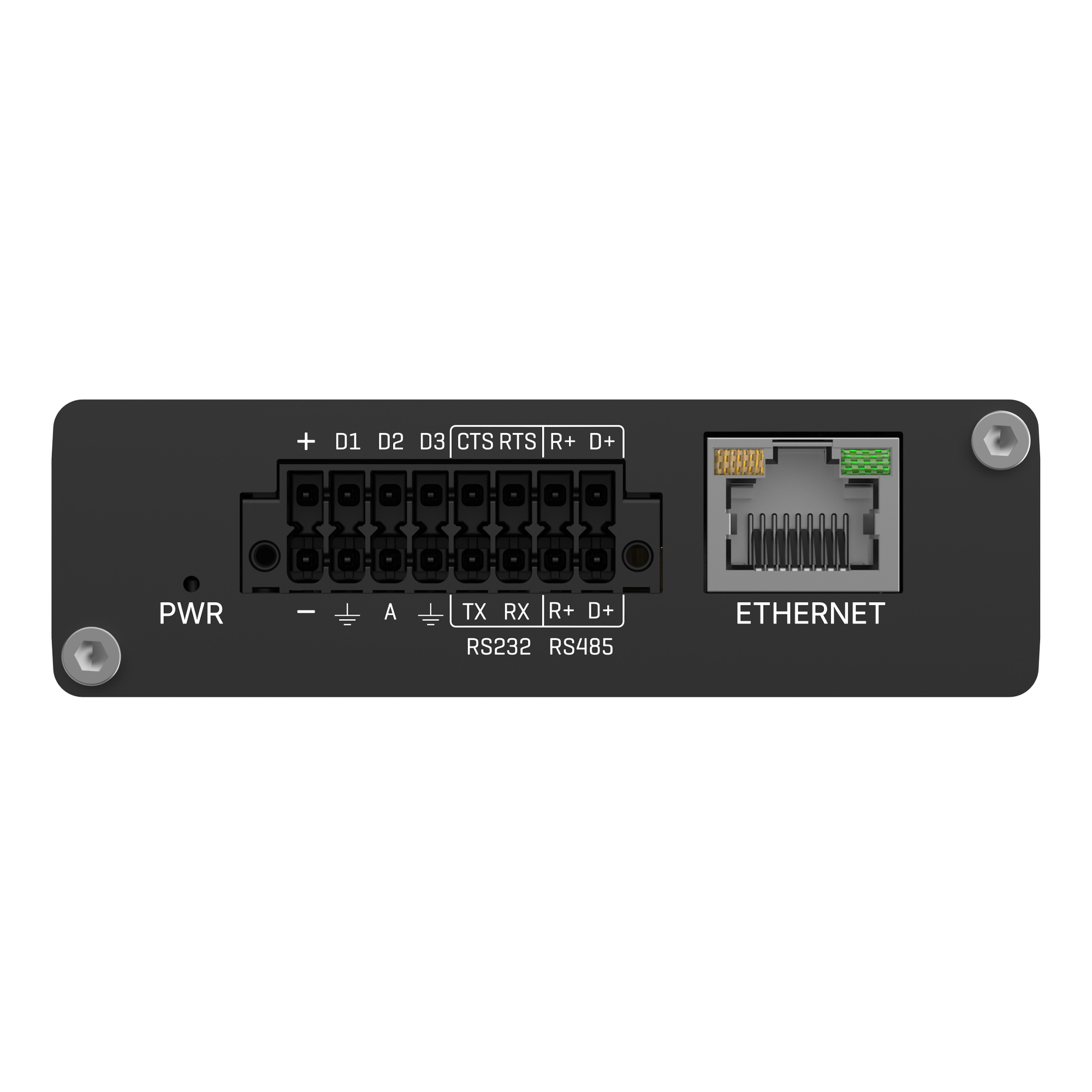

1 x 16-pin terminal block

1 x SMA for GNSS

4-pin in 16-pin terminal block (TX, RX, RTS, CTS)

4-pin in 16-pin terminal block (D+, D-, R+, R-)

Reboot/User default reset/Factory reset button

Anodized aluminum housing and panels

82.6 x 25 x 83 mm

180 g

DIN rail, wall mount, flat surface (all require additional kit)

-40 °C to 75 °C

10% to 90% non-condensing

IP30

CE, UKCA, CB, UCRF, EAC, WEEE
