Teltonika OTD140

0,00 ₴

Артикул:

719

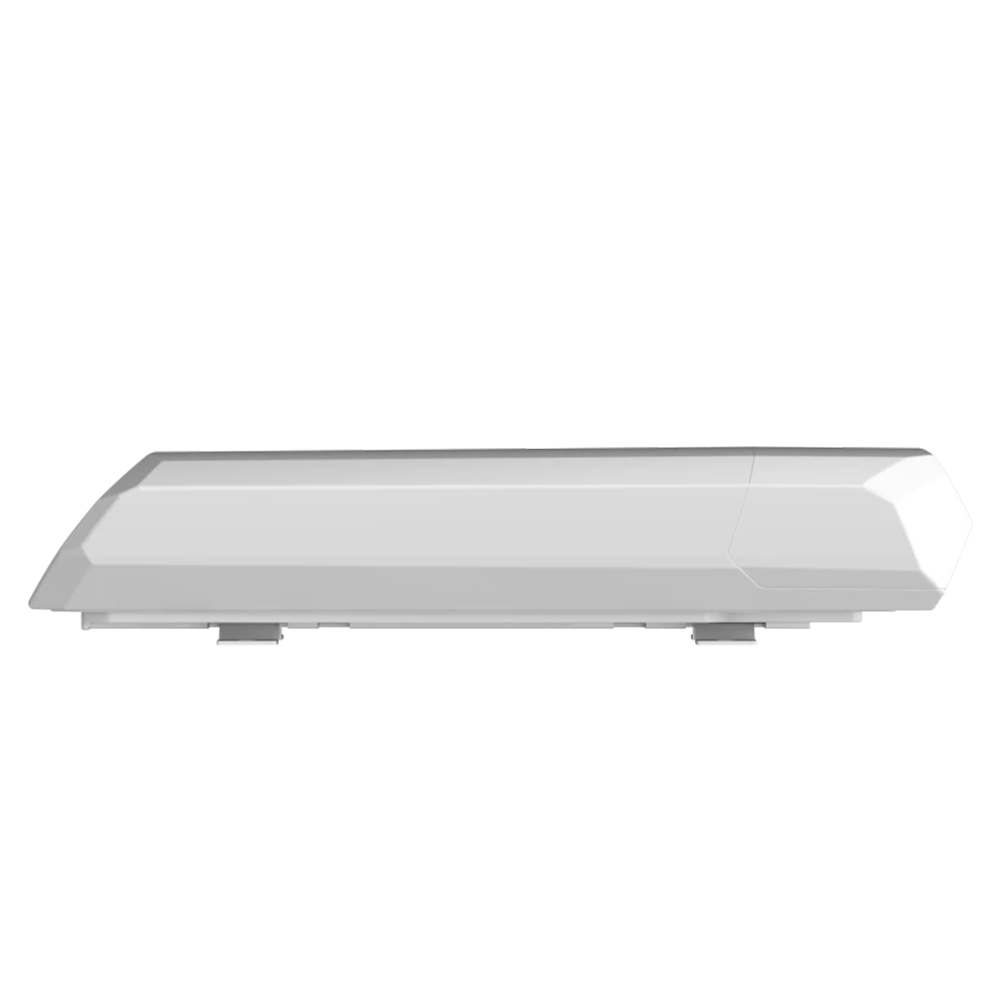

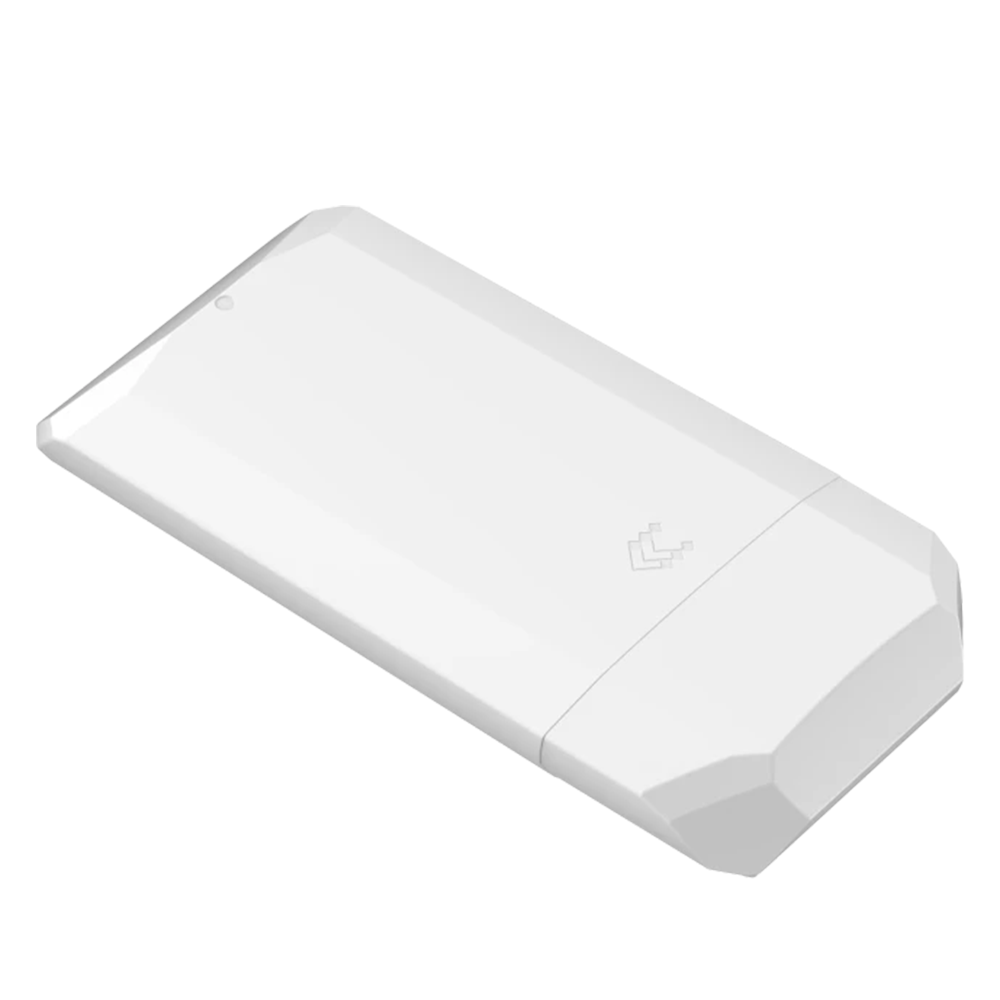

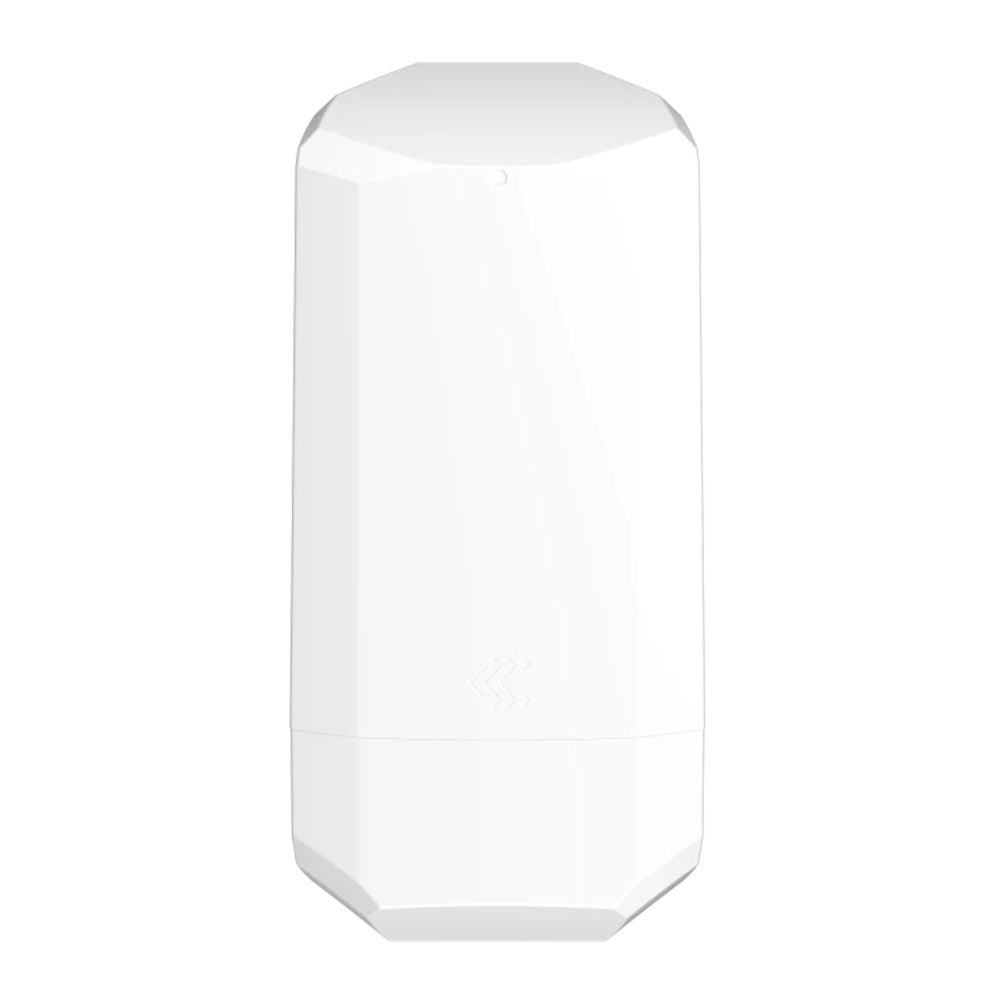

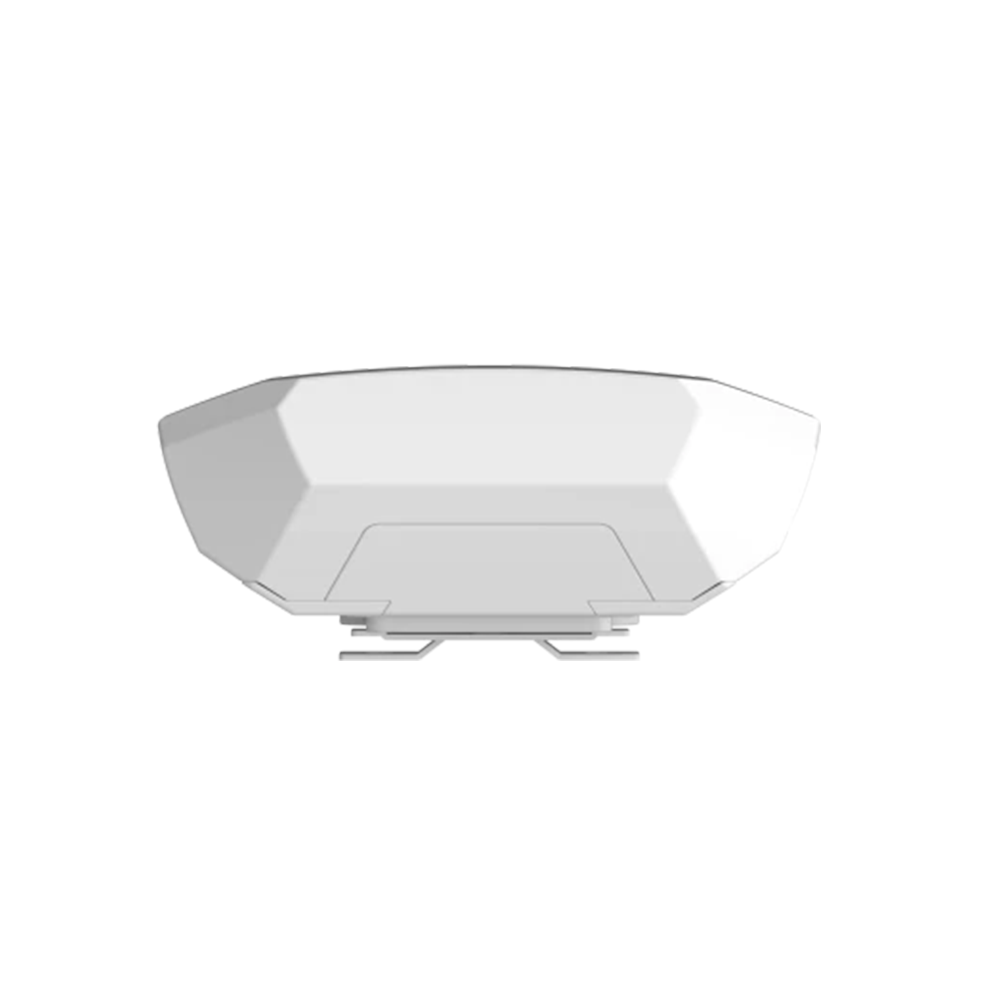

Маршрутизатор для зовнінього викорисання OTD140 має спеціальний і міцний пластиковий корпус зі стандартом IP55 і вбудованим монтажним кронштейном, що робить цей зовнішній 4G маршрутизатор простим у використанні та здатним витримувати зовнішні умови навколишнього середовища. Крім того, цей маршрутизатор оснащений підключенням LTE Cat 4, та сумісний з RMS, що надає можливість віддаленого керування, а також два порти PoE-in/out Ethernet.

Комплекс постачання - стандартний пакет*:

Маршрутизатор OTD140

Тримач маршрутизатора

QSG (Короткий посібник із початку роботи)

Пакувальна коробка

* Вміст стандартного пакета відрізняється для стандартних кодів замовлення.

Stuff

Зображення

Техничні характеристики

MOBILE

Mobile module

4G (LTE) - LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G - 21 Mbps DL, 5.76 Mbps UL; 2G - 236.8 kbps DL, 236.8 kbps UL
SIM switch

2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status

Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD

Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list

Operator black/white list
Band management

Band lock, Used band status display
APN

Auto APN
Bridge

Direct connection (bridge) between mobile ISP and device on LAN
Passthrough

Router assigns its mobile WAN IP address to another device on LAN

ETHERNET

LAN

2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

POE IN

PoE ports

1 x PoE In
PoE standards

802.3af/at

POE OUT

PoE ports

1 x PoE Out
PoE standards

802.3af/at
PoE Max Power per Port (at PSE)

24 W Max (power supply unit dependent)

NETWORK

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall

Port forward, traffic rules, custom rules
Firewall status page

View all your Firewall statistics, rules, and rule counters
Ports management

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology

Visual representation of your network, showing which devices are connected to which other devices
DHCP

Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS

Supported >25 service providers, others can be configured manually
Network backup

VRRP, Wired options, each of which can be used as an automatic Failover
Hotspot

Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
SSHFS

Possibility to mount remote file system via SSH protocol

SECURITY

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
Firewall

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN

Port and tag-based VLAN separation
Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control

Flexible access control of SSH, Web interface, CLI and Telnet

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec

IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE

GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN

Method of building scalable IPsec VPNs
SSTP

SSTP client instance support
ZeroTier

ZeroTier VPN client support
WireGuard

WireGuard VPN client and server support
Tinc

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

Supported modes

Client, Server (planned)
Supported connection types

TCP

MODBUS

Supported modes

Server, Client
Supported connection types

TCP
Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol

HTTP(S), MQTT, Azure MQTT
Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server

MODBUS MQTT GATEWAY

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

Supported modes

Station, Outstation
Supported connection

TCP

DLMS

DLMS Support

DLMS - standard protocol for utility meter data exchange

MONITORING & MANAGEMENT

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA

Firmware update from server, automatic notification
SSH

SSH (v1, v2)
SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT

MQTT Broker, MQTT publisher
SNMP

SNMP (v1, v2, v3), SNMP Trap
JSON-RPC

Management API over HTTP/HTTPS
RMS

Teltonika Remote Management System (RMS)

IOT PLATFORMS

Cloud of Things

Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub

Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

CPU

Mediatek, 580 MHz, MIPS 24KEc
RAM

128 MB
FLASH storage

16 MB

FIRMWARE / CONFIGURATION

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA

Update FW
RMS

Update FW/configuration for multiple devices at once
Keep settings

Update FW without losing current configuration

FIRMWARE CUSTOMISATION

Operating system

RutOS (OpenWrt based Linux OS)
Supported languages

Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools

SDK package with build environment provided
GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.

INPUT / OUTPUT

Events

Email, RMS, SMS

POWER

Connector

RJ45 Socket
Input voltage range

42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Input voltage range for PoE

42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption

Idle: < 2.5 W / Max: < 6 W / PoE Max < 21 W

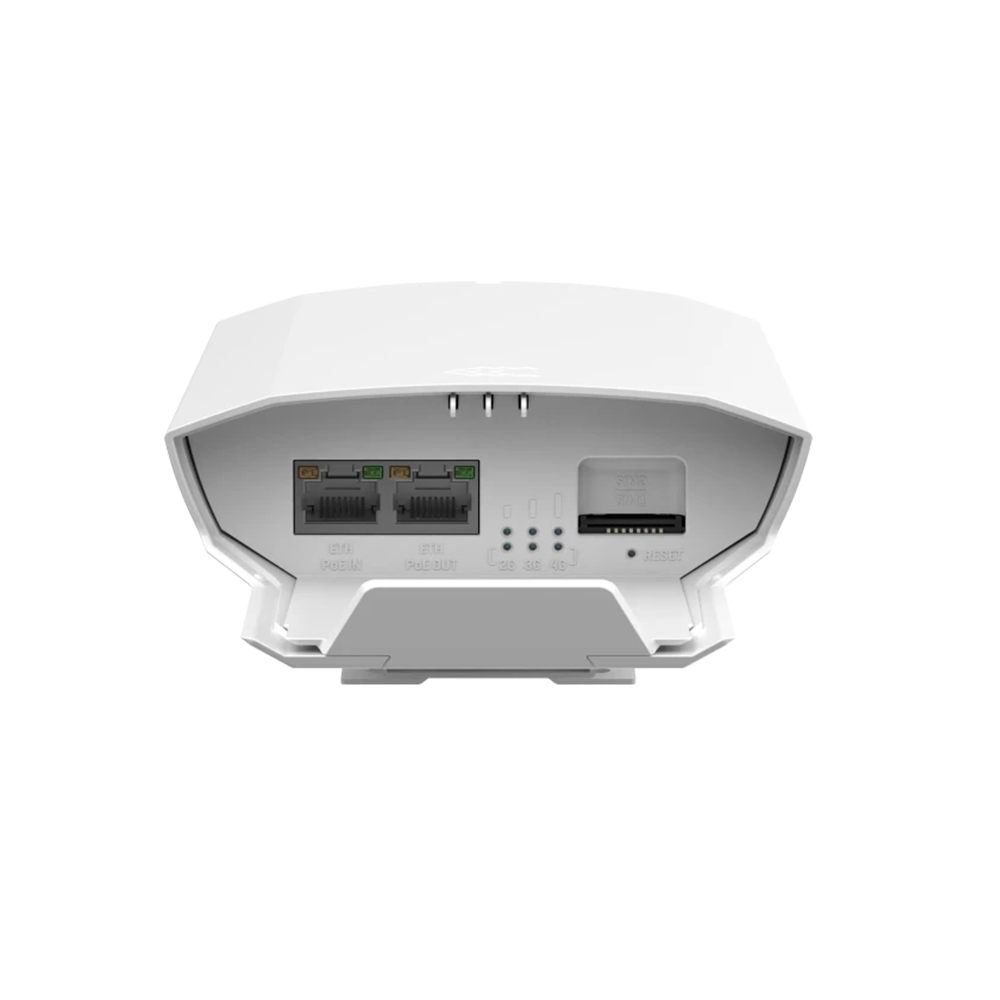

PHYSICAL INTERFACES

Ethernet

2 x RJ45 ports, 10/100 Mbps
Status LEDs

3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
SIM

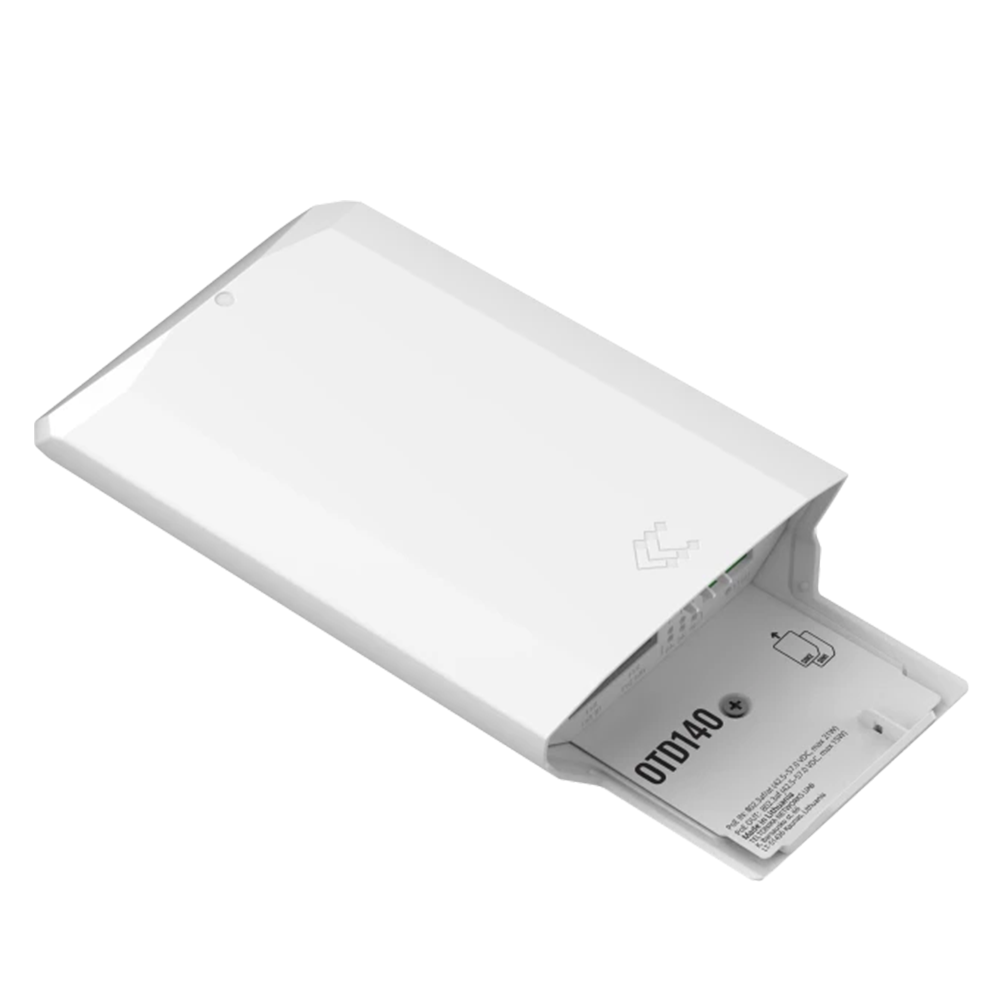

2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power

RJ45, PoE In, 42.5 – 57.0 VDC
Antennas

2 x Internal antennas
Reset

Reboot/User default reset/Factory reset button
