МОБІЛЬНІ МЕРЕЖІ
|
|
Мобільний модуль
|
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
|
|
Status
|
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received,
connected band, IMSI, ICCID
|
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET,
EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS,
scheduled SMS, SMS autoreply, SMPP
|
|
Black/White list
|
Operator black/white list
|
|
Band management
|
Band lock, Used band status display
|
|
APN
|
Auto APN
|
|
Bridge
|
Direct connection (bridge) between mobile ISP and device on LAN
|
|
Passthrough
|
Router assigns its mobile WAN IP address to another device on LAN
|
|
Multiple PDN (optional)
|
Possibility to use different PDNs for multiple network access and services (not available in standard FW)
|
|
WIRELESS
|
|
Wireless mode
|
IEEE 802.11b/g/n, Access Point (AP), Station (STA)
|
|
WiFi security
|
WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
|
|
SSID
|
SSID stealth mode and access control based on MAC address
|
|
WiFi users
|
Up to 50 simultaneous connections
|
|
Wireless Hotspot
|
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
|
|
ETHERNET
|
|
WAN
|
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
|
|
LAN
|
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
|
|
NETWORK
|
|
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6)
|
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake On Lan (WOL)
|
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
|
|
Connection monitoring
|
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
|
|
Firewall
|
Port forward, traffic rules, custom rules
|
|
DHCP
|
Static and dynamic IP allocation, DHCP Relay, Relayd
|
|
QoS / Smart Queue Management (SQM)
|
Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
|
|
DDNS
|
Supported >25 service providers, others can be configured manually
|
|
Network backup
|
VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
|
|
Load balancing
|
Balance your internet traffic over multiple WAN connections
|
|
SSHFS (optional)
|
Possibility to mount remote file system via SSH protocol (not available in standard FW)
|
|
SECURITY
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates
|
|
Firewall
|
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
|
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
|
|
VLAN
|
Port and tag based VLAN separation
|
|
Mobile quota control
|
Set up custom data limits for the SIM card
|
|
WEB filter
|
Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
|
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter
|
|
VPN
|
|
OpenVPN
|
Multiple clients and server can be running simultaneously, 12 encryption methods
|
|
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
|
|
IPsec
|
IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
|
|
GRE
|
GRE tunnel
|
|
PPTP, L2TP
|
Client/Server services can run simultaneously
|
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
|
|
SSTP
|
SSTP client instance support
|
|
ZeroTier
|
ZeroTier VPN
|
|
WireGuard
|
WireGuard VPN client and server support
|
|
MODBUS
|
|
MODBUS TCP SLAVE
|
|
ID filtering
|
Respond to one ID in range [1;255] or any
|
|
Allow Remote Access
|
Allow access through WAN
|
|
Custom registers
|
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
|
|
MODBUS TCP MASTER
|
|
Supported functions
|
01, 02, 03, 04, 05, 06, 15, 16
|
|
Supported data formats
|
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
|
|
MODBUS DATA TO SERVER
|
|
Protocol
|
HTTP(S), MQTT, Azure MQTT
|
|
MQTT GATEWAY
|
|
MQTT gateway
|
Allows sending commands and receiving data from MODBUS Master through MQTT broker
|
|
MONITORING & MANAGEMENT
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
|
|
FOTA
|
Firmware update from sever, automatic notification
|
|
SSH
|
SSH (v1, v2)
|
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
|
|
Call
|
Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off
|
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
|
|
MQTT
|
MQTT Broker, MQTT publisher
|
|
SNMP
|
SNMP (v1, v2, v3), SNMP trap
|
|
JSON-RPC
|
Management API over HTTP/HTTPS
|
|
MODBUS
|
MODBUS TCP status/control
|
|
RMS
|
Teltonika Remote Management System (RMS)
|
|
IoT PLATFORMS
|
|
Cloud of Things
|
Allows monitoring of: Device data, Mobile data, Network info, Availability
|
|
ThingWorx
|
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
|
|
Cumulocity
|
Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
|
|
Azure IoT Hub
|
Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
|
|
SYSTEM CHARACTERISTICS
|
|
CPU
|
Mediatek MIPS 24Kc 580 MHz
|
|
RAM
|
128 MB, DDR2
|
|
FLASH storage
|
16 MB, SPI Flash
|
|
FIRMWARE / CONFIGURATION
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
|
|
FOTA
|
Update FW/configuration from server
|
|
RMS
|
Update FW/configuration for multiple devices
|
|
Keep settings
|
Update FW without losing current configuration
|
|
FIRMWARE CUSTOMIZATION
|
|
Operating system
|
RutOS (OpenWrt based Linux OS)
|
|
Supported languages
|
Busybox shell, Lua, C, C++
|
|
Development tools
|
SDK package with built environment provided
|
|
INPUT/OUTPUT
|
|
Input
|
1 x Digital input, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high
|
|
Output
|
1 x Digital open collector output, max output 30 V, 300 mA
|
|
Events
|
SMS, EMAIL, RMS
|
|
POWER
|
|
Connector
|
4 pin industrial DC power socket
|
|
Input voltage range
|
9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max
|
|
PoE (passive)
|
Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt
|
|
Power consumption
|
< 6.5 W Max
|
|

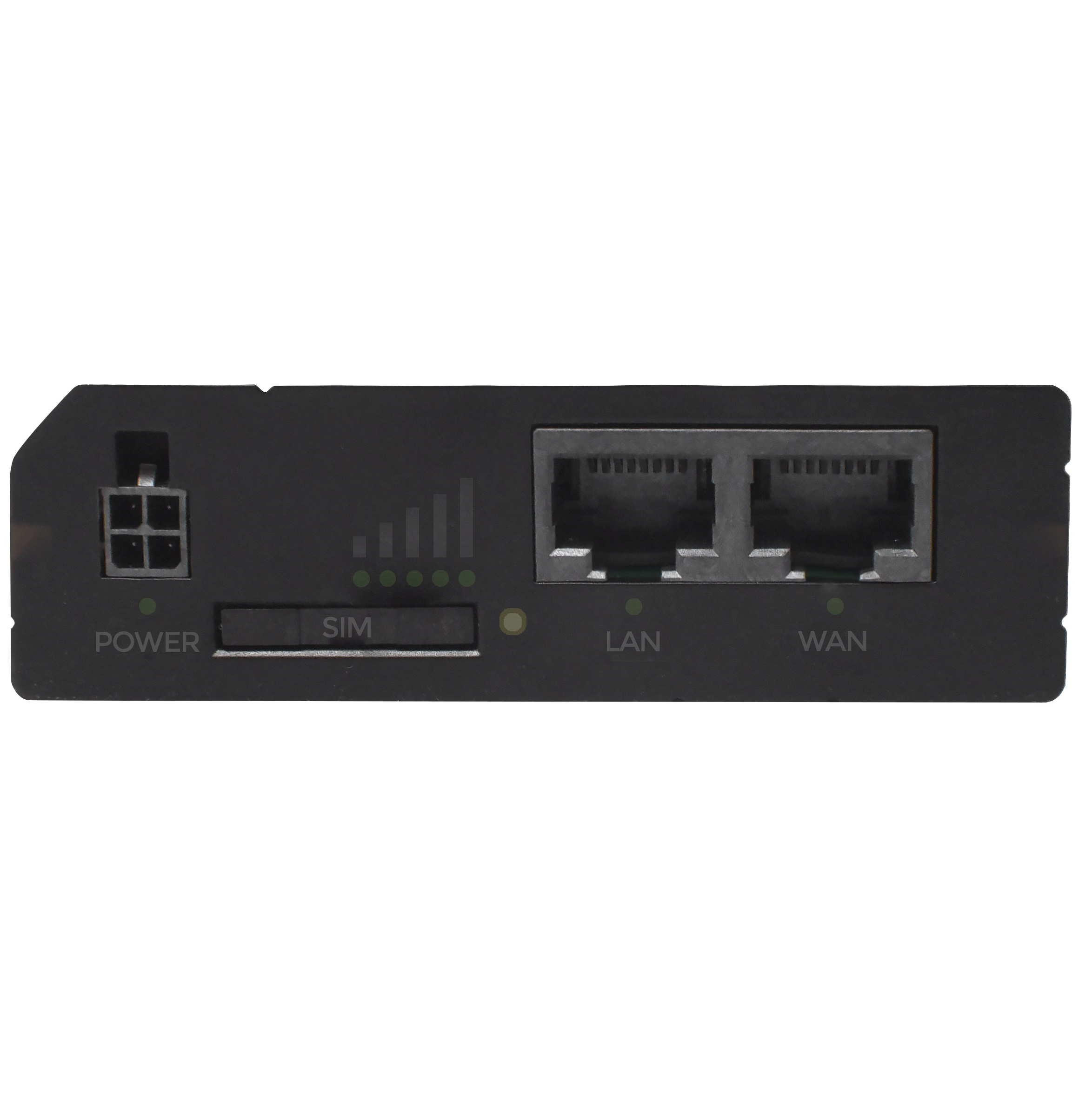

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
|
|
Ethernet
|
2 x RJ45 ports, 10/100 Mbps
|
|
I/O’s
|
1 x Digital Input, 1 x Digital Output on 4 pin power connector
|
|
Status LEDs
|
3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
|
|
SIM
|
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
|
|
Power
|
1 x 4 pin DC connector
|
|

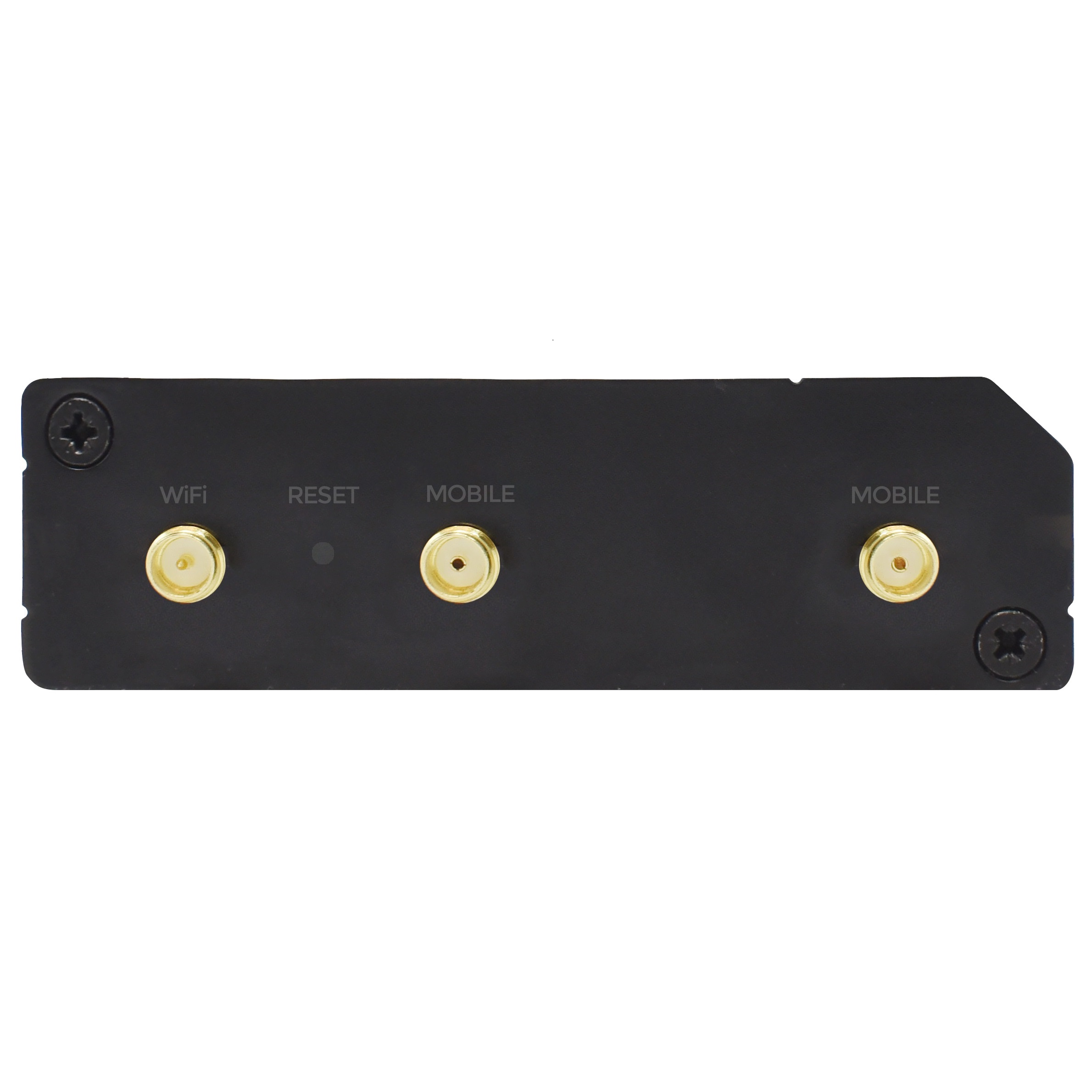

Antennas
|
2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
|
|
Reset
|
Reboot/Factory reset button
|
|

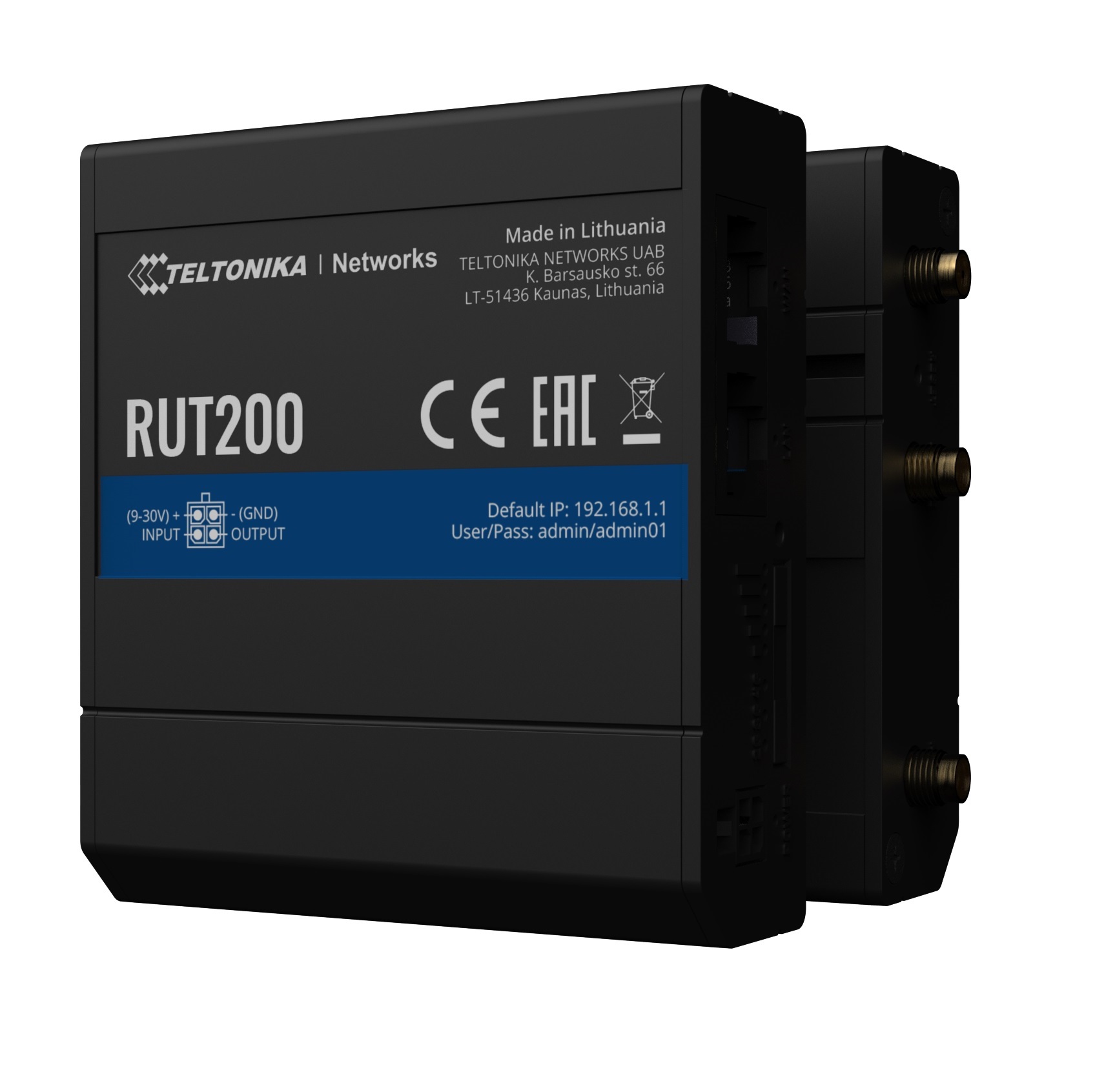

PHYSICAL SPECIFICATION
|
|
Casing material
|
Aluminium housing with DIN rail mounting option, plastic panels
|
|
Dimensions (W x H x D)
|
83 x 25 x 74 mm
|
|
Weight
|
125 g
|
|
Mounting options
|
Bottom and sideways DIN rail mounting slots
|
|
OPERATING ENVIRONMENT
|
|
Operating temperature
|
-40 °C to 75 °C
|
|
Operating humidity
|
10% to 90% non-condensing
|
|
Ingress Protection Rating
|
IP30
|
