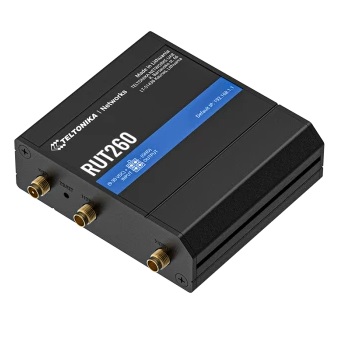

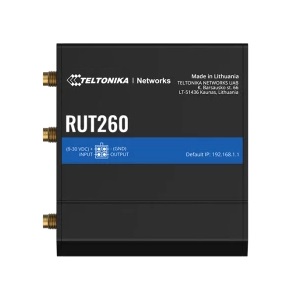

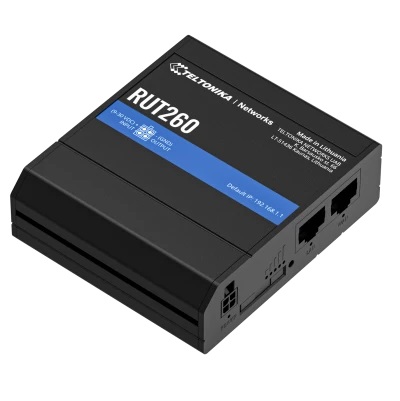

Teltonika RUT260

0,00 ₴

Артикул:

638

RUT260 — це стільниковий маршрутизатор Teltonika Networks з LTE Cat 6 із перемиканням після відмови WAN. Збалансовуючи ключові характеристики RUT240 і RUT360, цей стільниковий маршрутизатор є потужним, легким і при цоьму підтримує широкий спектр промислових протоколів, включаючи MQTT, SNMP, Modbus і багато інших.

Комплект постачання:

Маршрутизатор RUT260

Блок живлення 9В 1А

2 x LTE антени (компактна, поворотна, SMA male)

1 x WiFi антена (виносна, 1,5м., магнітна основа, RP-SMA male)

Патч-корд Ethernet 1,5м.

Адаптери SIM карт (nano-SIM, micro-SIM)

QSG (керывництво - швидкий старт)

RMS вкладиш

Пакувальна коробка

Stuff

Зображення

Техничні характеристики

MOBILE

Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

WIRELESS

Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Wi-Fi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID ESSID stealth mode
Wi-Fi users Up to 50 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless mesh/roaming Fast roaming (802.11r)
Wireless MAC filter

Whitelist, blacklist

ETHERNET

WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Wired options, each of which can be used as an automatic Failover, Wi-Fi WAN, Mobile
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol

SECURITY

Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

Supported modes Client, Server (planned)
Supported connection types TCP

MODBUS

Supported modes Server, Client
Supported connection types TCP
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol HTTP(S), MQTT, Azure MQTT

MODBUS MQTT GATEWAY

Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

Supported modes Station, Outstation
Supported connection TCP

MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

IOT PLATFORMS

Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash

FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided

INPUT / OUTPUT

Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event

POWER

Connector 4-pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: < 2 W, Max: < 6.5 W

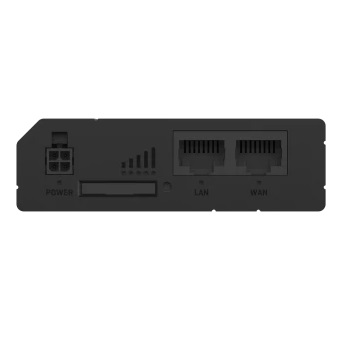

PHYSICAL INTERFACES

Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 2 x Connection type status, 5 x Mobile connection strength, 1 x LAN status, 1 x WAN status, 1 x Power
SIM 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder, eSIM (Optional)
Power 1 x 4-pin power connector
Antennas 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi
Reset Reboot/User default reset/Factory reset button
