4 x SFP ports

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Profinet Class B conformance (available with optional order code)

Yes

Yes

Yes

802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)

MRP client role, MRP manager role

Loop protection, Forwarding table, VLAN, STP/RSTP

DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards

Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

Port priority, DSCP priority, 802.1p priority, TOS

SP/WFQ/WRR

Rate limiting, storm control

Port-based shaping

Cable diagnostic, ping, traceroute, nslookup

Capability to restart PoE in a specific port

PAM — preshared key, Radius & TACACS+, IP & login attempts block

Port VLAN separation

Port-based network access control client and server

Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Realtek, single core, 500MHz, MIPS-4KEc

128MB, DDR3

16 MB serial flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

TSWOS (OpenWrt based Linux OS)

Busybox shell, Lua, C, C++

SDK package with build environment provided

The Package Manager is a service used to install additional software on the device

56 Gbps

83.33 Mpps

512 KB

8K entries

10000 bytes

Ports 1-24

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A

30 W

300 W

C14 connector

100-240 VAC, 50/60 Hz

Idle: 9 W / Max: 330 W / PoE Max: 300

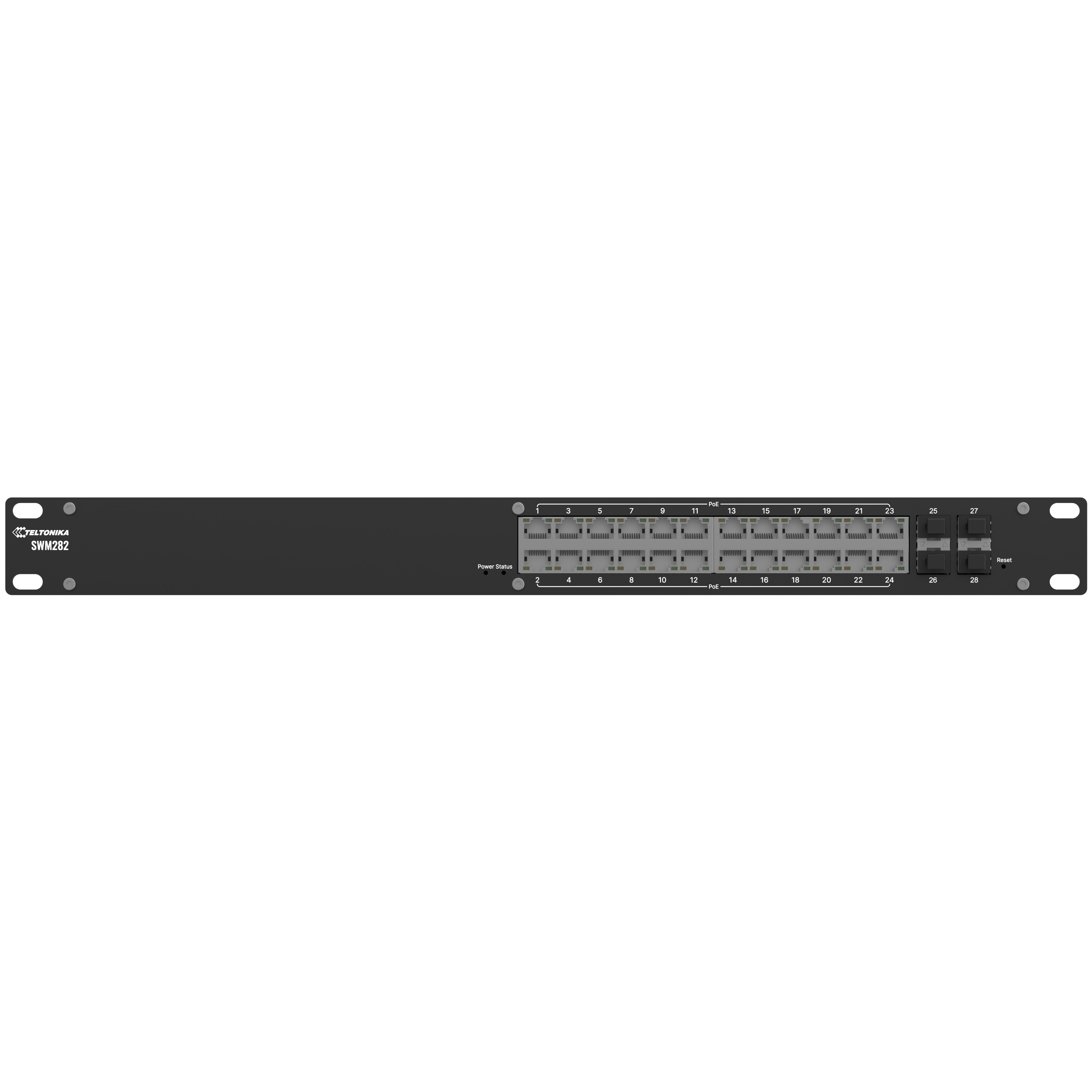

24 x RJ45 ports, 10/100/1000 Mbps

4 x SFP ports

1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs

1 x C14 connector

Software reset button

1 x Grounding screw

Anodized aluminum housing and panels

483 x 44 x 234 mm

2291 g

Rack mounting kit

0 °C to 50 °C

10% to 90% non-condensing

IP30

CE, UKCA, CB, RCM, FCC, IC
