Hardware
|
Mobile
|
LTE(Cat1)/3G/2G
|
SIM slot
|
Mini SIM (2FF)
|
Antenna connector
|
1 x SMA for LTE
|
RS485
|
Full Duplex (4 wires) and Half Duplex (2 wires), baud rate 300-115200
|
Input/Output
|
2 x Digital Input/Output (configurable)
|
CPU
|
ARM Cortex-A7 1.2 GHz CPU
|
RAM
|
128 MBytes (50 Mbytes available for userspace)
|
Flash
|
512 MBytes (70 Mbytes available for userspace)
|
Input voltage range
|
9 - 30 VDC
|

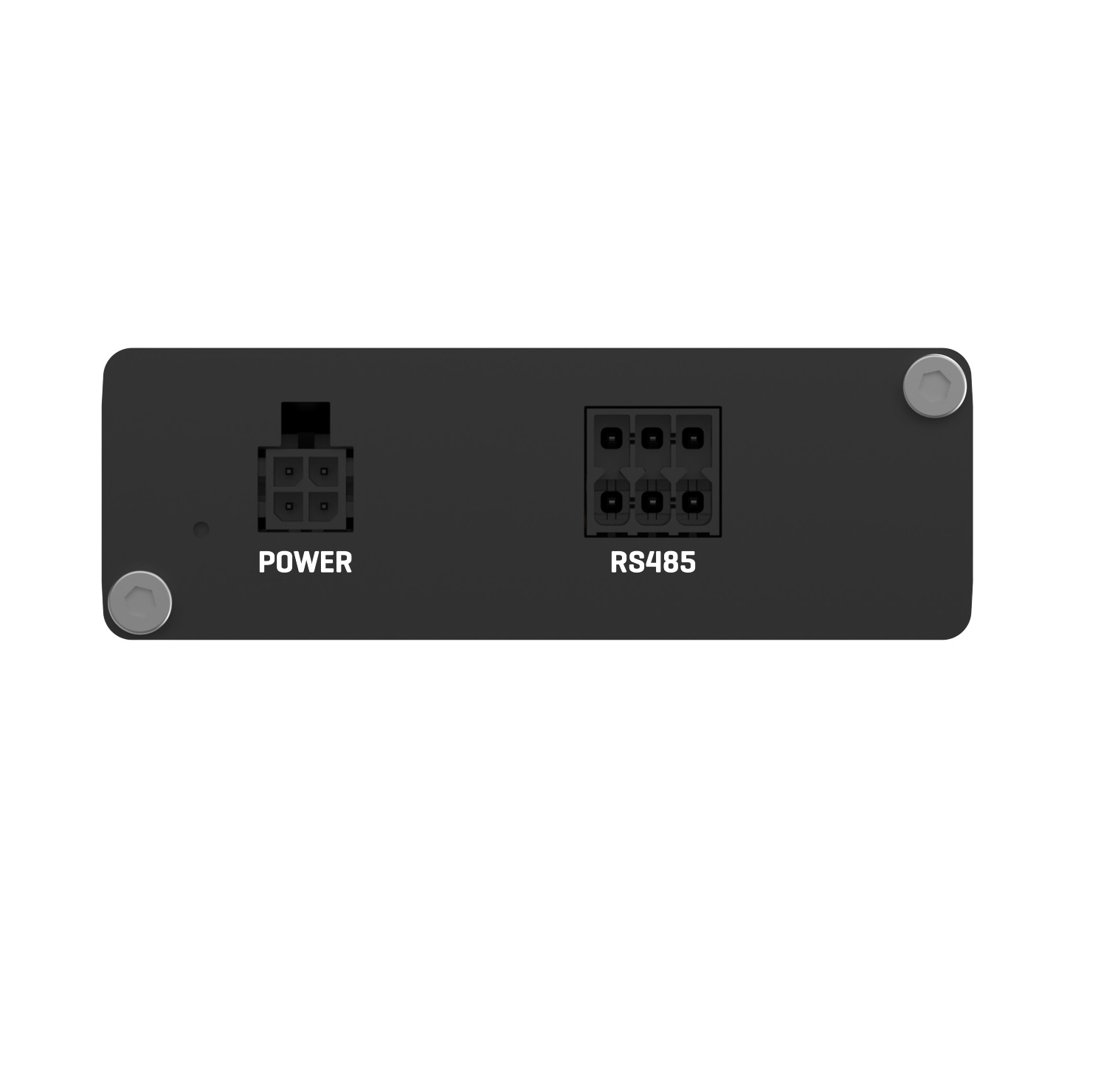

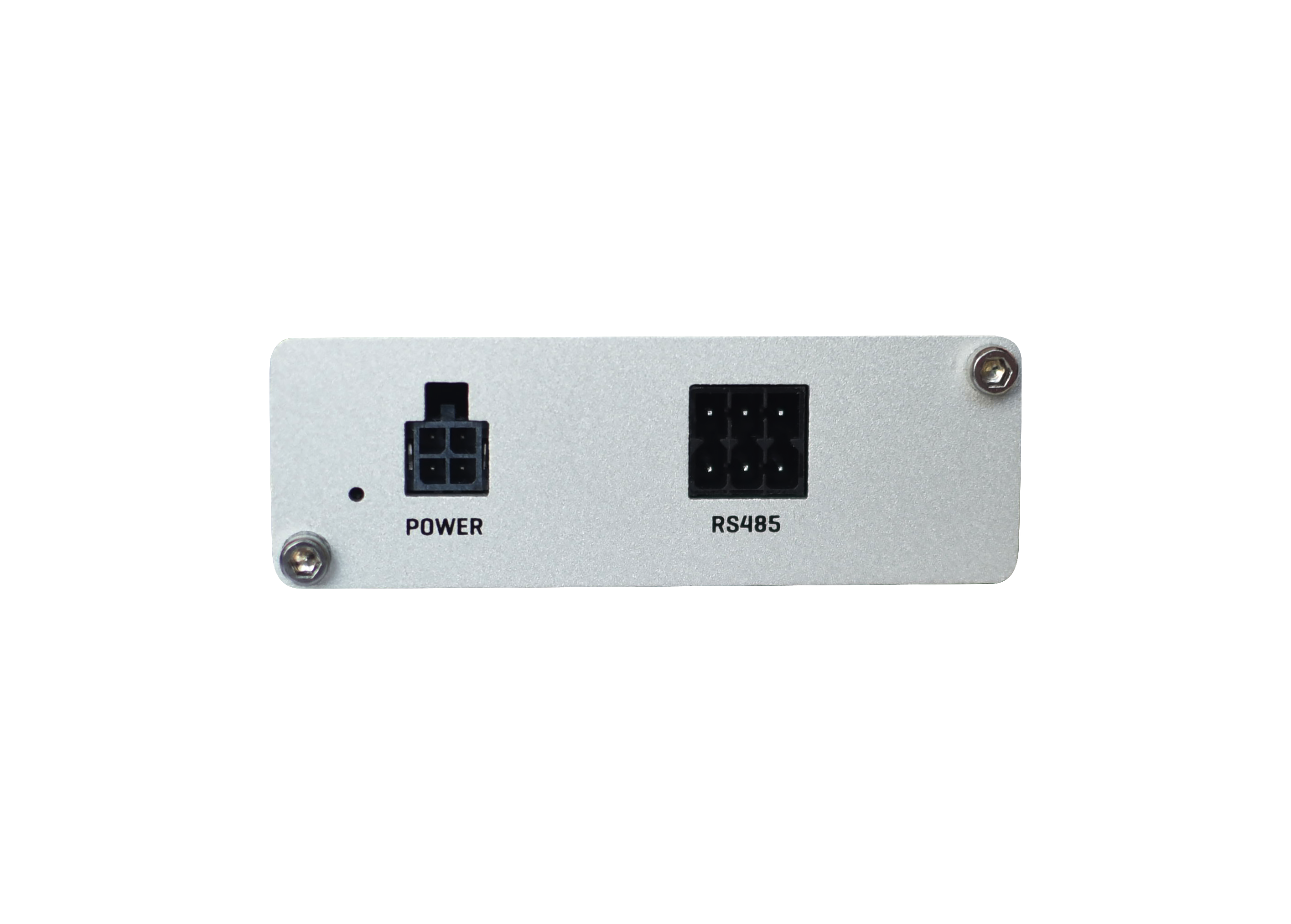

Power connector
|
4 pin industrial DC power socket
|
Optional power source
|
Possibility to power device over 6 pin RS485 connector’s spare terminals.
|

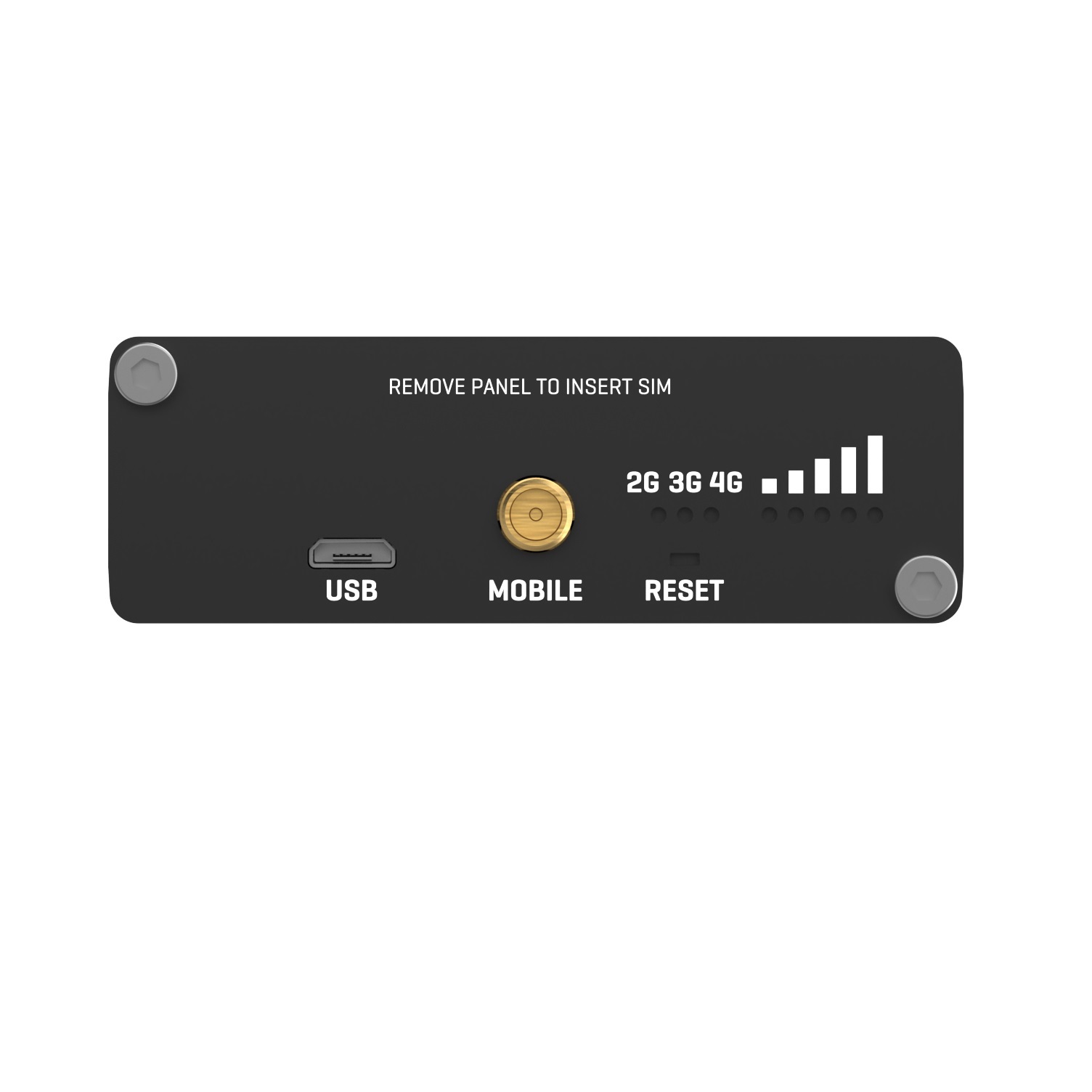

Configuration interface
|
Virtual NIC via Micro-USB connector
|
LED Indicators
|
Power, signal, network and data status LEDs
|
Software
|
Operating System
|
Linux OS with Yocto SDK (offering high software customisation)
|
Network
|
NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( >25 service providers supported)
|
RS485 related services
|
Modbus, Serial over IP, NTRIP
|
Remote management
|
RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
|
Status watchdogs
|
Ping reboot, periodic reboot
|
Additional features
|
Internet connectivity over USB virtual network interface
|
Mechanical & Environmental
|
Operating temperature
|
-40° C to 75° C
|
Storage temperature
|
-45° C to 80° C
|
Operating humidity
|
10% to 90% non-condensing
|
Storage humidity
|
5% to 95% non-condensing
|
Dimensions
|
60 mm x 70 mm x 18 mm
|
Weight
|
30 g
|
