INTERFACES |
Ethernet |
8 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
2 x SFP ports |
PERFORMANCE SPECIFICATIONS |
Bandwidth (Non-blocking) |
20 Gbps |
Packet buffer |
128 KB |
MAC address table size |
2K entries |
Jumbo frame support |
9216 bytes |
POWER |
Connector |
2 pin industrial DC power socket |
Input voltage range |
7-57 VDC |
Power consumption |
Idle: ~1.03 W / Max: 3.71 W |

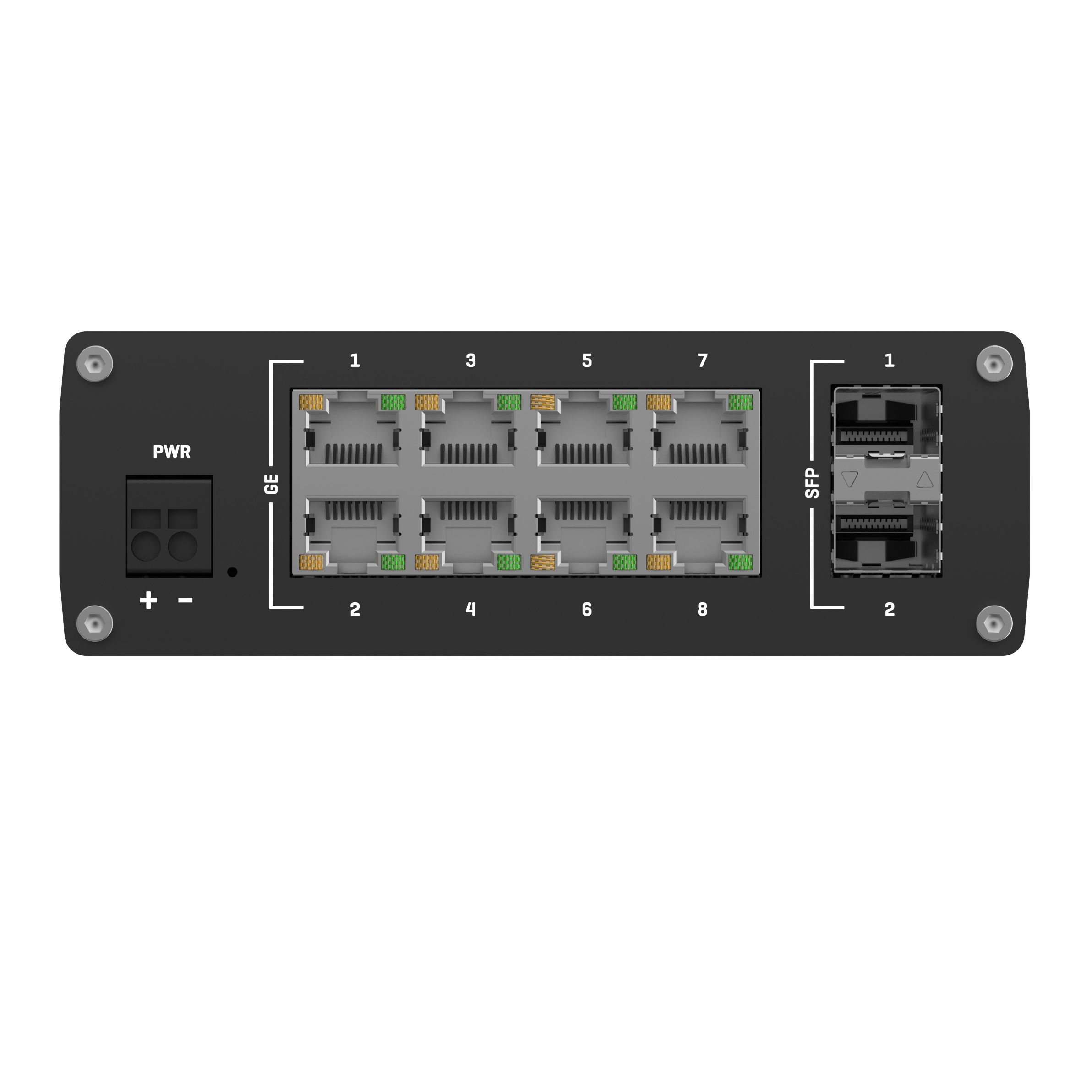

PHYSICAL INTERFACES (PORTS, LEDS) |
Ethernet |
8 x RJ45 ports, 10/100/1000 Mbps |
Fiber |
2 x SFP ports |
Status LED’s |
1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s |
Power |
1 x 2 pin industrial DC power socket |

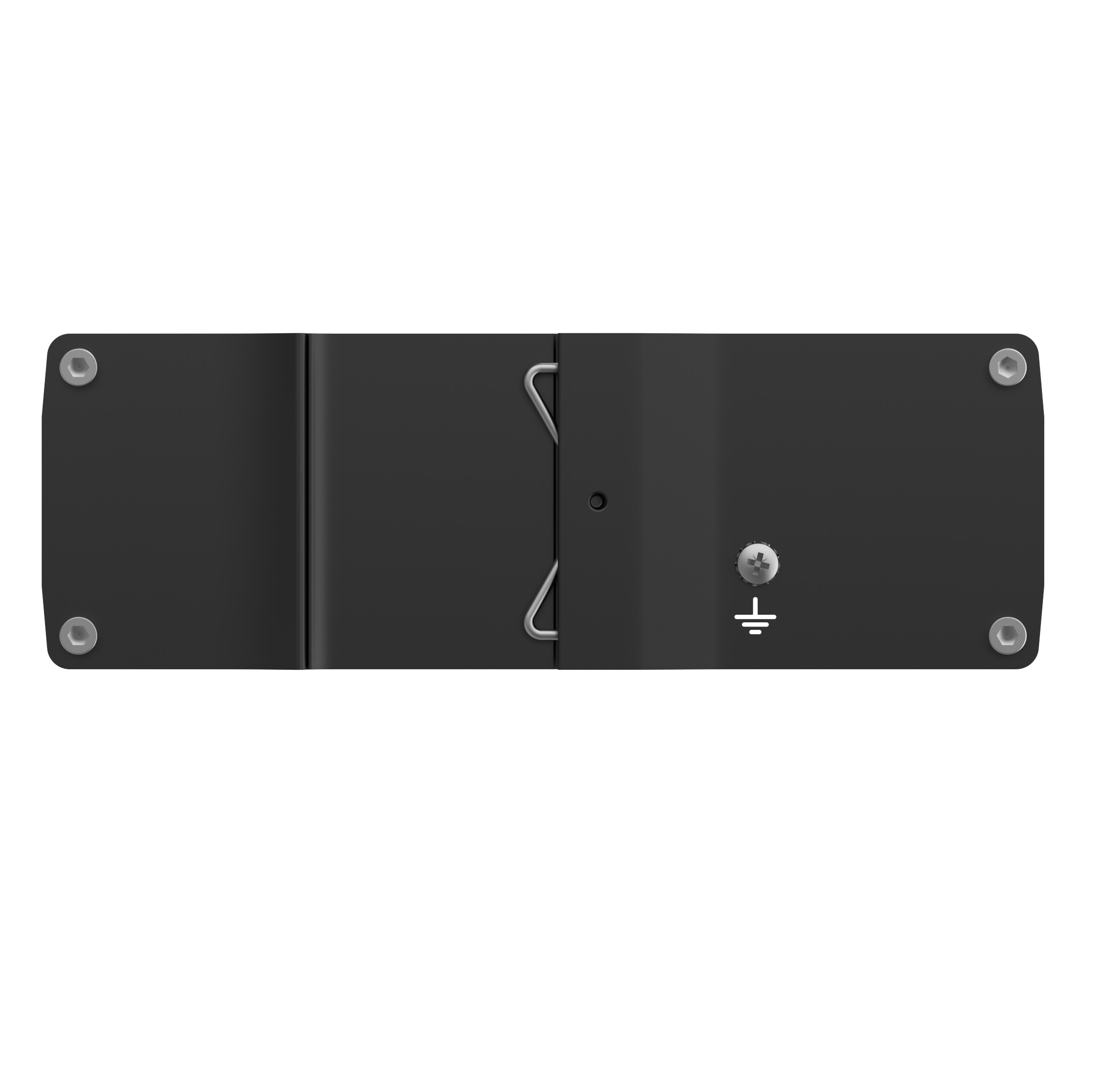

Ground |
1 x Grounding screw |
PHYSICAL SPECIFICATION |
Casing material |
Full aluminum housing |
Dimensions (W x H x D) |
132 x 44.2 x 95.1 mm |
Weight |
500 g |
Mounting |
DIN rail or wall mounting (additional kit needed), flat surface placement |
OPERATING ENVIRONMENT |
Operating temperature |
-40 °C to +75 °C |
Operating humidity |
10 % to 90 % non condensing |
Ingress Protection Rating |
IP30 |
Weight |
456 g |
Mounting |
DIN rail or wall mounting (additional kit needed), flat surface placement |
OPERATING ENVIRONMENT |
Operating temperature |
-40 °C to +75 °C |
Operating humidity |
10 % to 90 % non condensing |
Ingress Protection Rating |
IP30 |
