MOBILE



Mobile module

3G – Up to 14,4 Mbps, 2G – Up to 236.8 kbps

Status

Signal strength (RSSI), EC/IO, RSCP, Bytes sent/received

Bridge

Direct connection (bridge) between mobile ISP and device on LAN

SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS (optional), SMS to EMAIL (optional), SMS to HTTP (optional), SMS to SMS (optional), scheduled SMS, SMS autoreply, SMPP

Black/White list (optional)

Operator black/white list

Multiple PDN (optional)

Possibility to use different PDNs for multiple network access and services

WIRELESS

Wireless mode

IEEE 802.11b/g/n, Access Point (AP), Station (STA)

WiFi

WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter

WiFi security

WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation

SSID

SSID stealth mode and access control based on MAC address

WiFi users

Up to 50 simultaneous connections

Hotspot

Captive portal (Hotspot), internal/external Radius server , built in customizable landing page

ETHERNET

WAN

1 x WAN (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

LAN

1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK

Routing

Static routing, Dynamic routing (Optional - BGP, OSPF v2, RIP v1/v2)

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT (optional)

Connection monitoring

Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall

Port forward, traffic rules, custom rules

DHCP

Static and dynamic IP allocation

QoS

Traffic priority queuing by source/destination, service, protocol or port

DDNS

Supported >25 service providers, others can be configured manually

Network backup

VRRP, Mobile, Wired and Wi-Fi WAN options, each of which can be used as backup

Load balancing

Balance your internet traffic over multiple WAN connections

NetSnapper (optional)

Mobile connection management, data compression VPN client (not available in standard FW)

SSHFS (optional)

Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

Authetication

Pre-shared key, digital certificates, X.509 certificates

Firewall

Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Atack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

WiFi security

WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation

VLAN

Tag based VLAN separation

Mobile quota control

Set up custom data limits for the SIM card

WEB filter

Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only

Access control

Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN

Multiple clients and server can be running simultaneously, 12 encryption methods

OpenVPN Encryption

DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

IPsec

IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels, with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)

GRE

GRE tunnel

PPTP, L2TP

Client/Server services can run simultaneously

MONITORING & MANAGEMENT

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log

FOTA

Firmware update from sever, automatic notification.

SSH

SSH (v1, v2)

SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET

TR-069 (optional)

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems

MQTT (optional)

MQTT Broker, MQTT publisher

SNMP

SNMP (v1, v2, v3), SNMP trap

JSON-RPC

Management API over HTTP/HTTPS

MODBUS (optional)

MODBUS TCP status/control

RMS

Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

CPU

Atheros Hornet, MIPS 24Kc, 400 MHz

RAM

64MB, DDR2

FLASH memory

16MB SPI Flash

FIRMWARE / CONFIGURATION

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup, restore point

FOTA

Update FW/configuration from server

RMS

Update FW/configuration for multiple devices

Keep settings

Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system

RutOS powered by Linux based on OpenWRT

Supported languages

Busybox shell, Lua, C, C++

Development tools

GPL package with built environment provided

INPUT/OUTPUT

Input

1 x Digital Input

Output

1 x Digital Output

Events

SMS, EMAIL, RMS

POWER

Connector

4 pin DC power socket

Input voltage range

9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33VDC 10us max.

PoE (passive)

Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at

Power consumption

< 5 W

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

Ethernet

2 x RJ45 ports, 10/100 Mbps

Status LEDs

2 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED

SIM

1 x SIM slot (Mini SIM – 2FF, 2st form factor), 1.8V/3V, external SIM holder

Power

4 pin DC connector with 1 x Digital input and 1 x Digital output

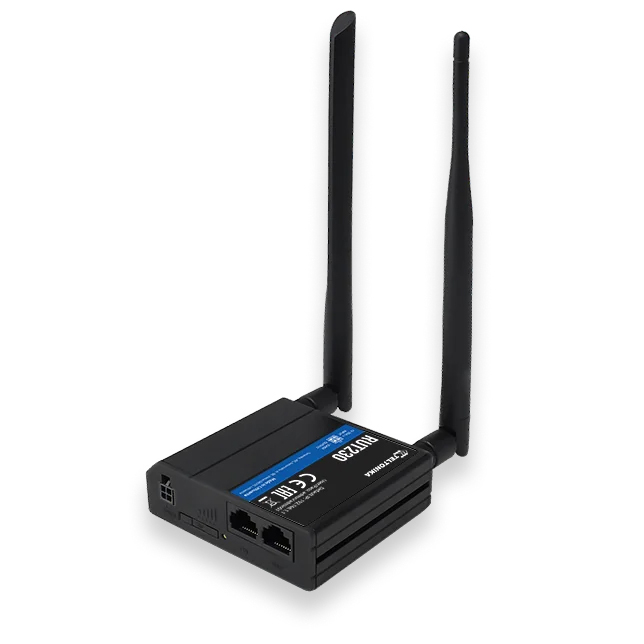

Anntenas

1 x SMA for 3G, 1 x RP-SMA for WiFi antenna connectors

Reset

Reset/restore to default button

PHYSICAL SPECIFICATION

Casing material

Aluminum housing, plastic panels

Dimensions

83 mm x 74 mm x 25 mm (H x W x D)

Weight

125 g

Mounting options

Bottom and sideways DIN rail mounting slots

OPERATING ENVIRONMENT

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

MTBF

320000 h
