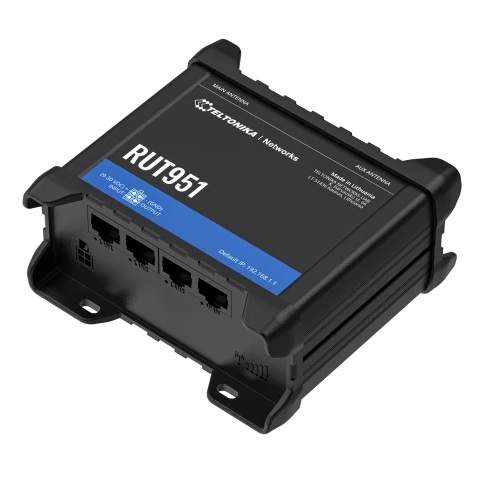

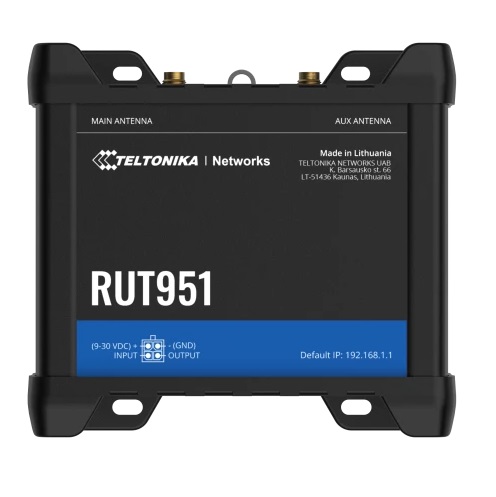

Teltonika RUT951

4G LTE маршрутизатор

Замовити

Графічна CAPTCHA
Введіть символи з малюнку.
4G LTE маршрутизатор
11 610,00 ₴
Артикул:
640
RUT951 має можливість підключення до двох SIM-карт у поєднанні з Wi-Fi і чотирма інтерфейсами Ethernet для задоволення потреб найрізноманітніших сценаріїв IoT. Цей маршрутизатор на базі RutOS пропонує розширені параметри налаштування, функції автоматизації та безпеку найвищого рівня для вашого рішення.

Комплект постачання:
Маршрутизатор RUT951
Блок живлення 9В 1А
2 x LTE антени (компактна, поворотна, SMA male)
2 x WiFi антена (компактна, поворотна, RP-SMA male)
Патч-корд Ethernet 1,5м.
Адаптери SIM карт (nano-SIM, micro-SIM)
QSG (керівництво - швидкий старт)
RMS вкладиш
Пакувальна коробка
Детальніше>>

Stuff

Зображення
Техничні характеристики
MOBILE
  • Mobile module
    4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • 3GPP Release
    Release 10/11 depending on the hardware version
  • SIM switch
    2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • Status
    Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
  • SMS
    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSD
    Supports sending and reading Unstructured Supplementary Service Data messages
  • Black/White list
    Operator black/white list
  • Multiple PDN
    Possibility to use different PDNs for multiple network access and services
  • Band management
    Band lock, Used band status display
  • APN
    Auto APN
  • Bridge
    Direct connection (bridge) between mobile ISP and device on LAN
  • Passthrough
    Router assigns its mobile WAN IP address to another device on LAN
WIRELESS
  • Wireless mode
    IEEE 802.11b/g/n, Access Point (AP), Station (STA)
  • Wi-Fi security
    WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
  • SSID/ESSID
    SSID stealth mode and access control based on MAC address
  • Wi-Fi users
    Up to 100 simultaneous connections
  • Wireless Hotspot
    Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
  • Wireless Connectivity Features
    Fast roaming (802.11r), Relayd
  • Wireless MAC filter
    Whitelist, blacklist
ETHERNET
  • WAN
    1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • LAN
    3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
  • Routing
    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
  • Network protocols
    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
  • VoIP passthrough support
    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Connection monitoring
    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Firewall
    Port forward, traffic rules, custom rules
  • DHCP
    Static and dynamic IP allocation, DHCP Relay
  • QoS / Smart Queue Management (SQM)
    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNS
    Supported >25 service providers, others can be configured manually
  • Network backup
    Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
  • Load balancing
    Balance Internet traffic over multiple WAN connections
  • SSHFS
    Possibility to mount remote file system via SSH protocol

  •

SECURITY
  • Authentication
    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
  • Firewall
    Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
  • Attack prevention
    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLAN
    Port and tag-based VLAN separation
  • Mobile quota control
    Mobile data limit, customizable period, start time, warning limit, phone number
  • WEB filter
    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Access control
    Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
  • OpenVPN
    Multiple clients and a server can run simultaneously, 27 encryption methods
  • OpenVPN Encryption
    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
    BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
  • IPsec
    IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
  • GRE
    GRE tunnel, GRE tunnel over IPsec support
  • PPTP, L2TP
    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
  • Stunnel
    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
  • DMVPN
    Method of building scalable IPsec VPNs
  • SSTP
    SSTP client instance support
  • ZeroTier
    ZeroTier VPN client support
  • WireGuard
    WireGuard VPN client and server support
  • Tinc
    Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
MODBUS TCP SLAVE
  • ID range
    Respond to one ID in range [1;255] or any
  • Allow Remote Access
    Allow access through WAN
  • Custom registers
    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS TCP MASTER
  • Supported functions
    01, 02, 03, 04, 05, 06, 15, 16
  • Supported data formats
    8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
DATA TO SERVER
  • Protocol
    HTTP(S), MQTT, Azure MQTT, Kinesis
MQTT GATEWAY
  • MQTT Gateway
    Allows sending commands and receiving data from MODBUS Master through MQTT broker
DNP3
  • Supported modes
    TCP Master, DNP3 Outstation
MONITORING & MANAGEMENT
  • WEB UI
    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
  • FOTA
    Firmware update from server, automatic notification
  • SSH
    SSH (v1, v2)
  • SMS
    SMS status, SMS configuration, send/read SMS via HTTP POST/GET
  • Call
    Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
  • TR-069
    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTT
    MQTT Broker, MQTT publisher
  • SNMP
    SNMP (v1, v2, v3), SNMP Trap
  • JSON-RPC
    Management API over HTTP/HTTPS
  • MODBUS
    MODBUS TCP status/control
  • RMS
    Teltonika Remote Management System (RMS)
IOT PLATFORMS
  • Cloud of Things
    Allows monitoring of: Device data, Mobile data, Network info, Availability
  • ThingWorx
    Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
  • Cumulocity
    Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
  • Azure IoT Hub
    Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
  • CPU
    Mediatek, 580 MHz, MIPS 24KEc
  • RAM
    128 MB, DDR2
  • FLASH storage
    16 MB, SPI Flash
FIRMWARE / CONFIGURATION
  • WEB UI
    Update FW from file, check FW on server, configuration profiles, configuration backup
  • FOTA
    Update FW
  • RMS
    Update FW/configuration for multiple devices at once
  • Keep settings
    Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
  • Operating system
    RutOS (OpenWrt based Linux OS)
  • Supported languages
    Busybox shell, Lua, C, C++
  • Development tools
    SDK package with build environment provided
INPUT / OUTPUT
  • Input
    1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
  • Output
    1 x Digital Output, Open collector output, max output 30 V, 300 mA
  • Events
    Email, RMS, SMS
  • I/O juggler
    Allows to set certain I/O conditions to initiate event
POWER
  • Connector
    4-pin industrial DC power socket
  • Input voltage range
    9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
  • PoE (passive)
    Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
  • Power consumption
    < 2 W idle, < 7 W Max
PHYSICAL INTERFACES

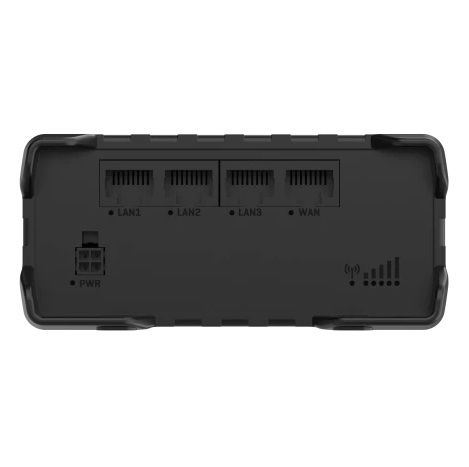

  • Ethernet
    4 x RJ45 ports, 10/100 Mbps
  • I/O’s
    1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • Status LEDs
    1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
  • SIM

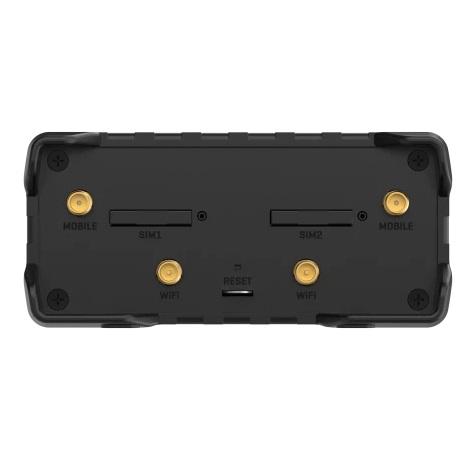

    2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
  • Antennas
    2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
  • Reset
    Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
  • Casing material
    Aluminium housing, plastic panels
  • Dimensions (W x H x D)
    110 x 50 x 100 mm
  • Weight
    287 g
  • Mounting options
    DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
  • Operating temperature
    -40 °C to 75 °C
  • Operating humidity
    10% to 90% non-condensing
  • Ingress Protection Rating
    IP30
REGULATORY & TYPE APPROVALS
  • Regulatory
    CE/RED, UKCA, CB
EMC EMISSIONS & IMMUNITY
  • Standards
    EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019
  • ESD
    EN 61000-4-2:2009
  • RS
    EN 61000-4-3:2020
  • EFT
    EN 61000-4-4:2012
  • Surge immunity (AC Power Line)
    EN 61000-4-5:2014+A1:2017
  • CS
    EN 61000-4-6:2014
  • DIP
    EN IEC 61000-4-11:2020
RF
  • Standards
    EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1
SAFETY
  • Standards
    EN IEC 62311:2020 IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020

Завантаження
Додаткові файли:
rut951-datasheet-2023-v10.pdf
rut951-flyer-2023-v11.pdf
