4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

Release 12

2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Supports sending and reading Unstructured Supplementary Service Data messages

Operator black/white list (by country or separate operators)

Possibility to use different PDNs for multiple network access and services

Band lock, Used band status display

When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

Auto APN

Direct connection (bridge) between mobile ISP and device on LAN

Router assigns its mobile WAN IP address to another device on LAN

1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Port forward, traffic rules, custom rules, TTL target customisation

View all your Firewall statistics, rules, and rule counters

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Visual representation of your network, showing which devices are connected to which other devices

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

Supported >25 service providers, others can be configured manually

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Balance Internet traffic over multiple WAN connections

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Possibility to mount remote file system via SSH protocol

Initial virtual routing and forwarding (VRF) support

Real-time monitoring, wireless signal charts, traffic usage history

Port-based network access control client

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

Port and tag-based VLAN separation

Mobile data limit, customizable period, start time, warning limit, phone number

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Flexible access control of SSH, Web interface, CLI and Telnet

Let's Encrypt and SCEP certificate generation methods

Multiple clients and a server can run simultaneously, 27 encryption methods

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE tunnel, GRE tunnel over IPsec support

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP client instance support

ZeroTier VPN client support

WireGuard VPN client and server support

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

Client, Server

TCP

Server, Client

TCP, USB

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

HTTP(S), MQTT, Azure MQTT

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Allows sending commands and receiving data from MODBUS Server through MQTT broker

Station, Outstation

TCP, USB

DLMS - standard protocol for utility meter data exchange

Client

TCP, USB

Allows to scan meter COSEM objects for automatic detection and configuration

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

Firmware update from server, automatic notification

SSH (v1, v2)

SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer

Receive email message status alerts of various services

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT Broker, MQTT publisher

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

Management API over HTTP/HTTPS

Teltonika Remote Management System (RMS)

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

MediaTek, Dual-core, 880 MHz, MIPS1004Kc

256 MB, DDR3

16 MB serial NOR flash, 256 MB serial NAND flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

RutOS (OpenWrt based Linux OS)

Busybox shell, Lua, C, C++

SDK package with build environment provided

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

The Package Manager is a service used to install additional software on the device

GPS, GLONASS, BeiDou, Galileo and QZSS

GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA 0183

Supported server software TAVL, RMS

Configurable multiple geofence zones

USB 2.0

Samba share, USB-to-serial

Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high

1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA

Email, RMS, SMS

Allows to set certain I/O conditions to initiate event

4-pin industrial DC power socket

9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max

Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC

Idle: < 2.65 W, Max: < 9.82 W

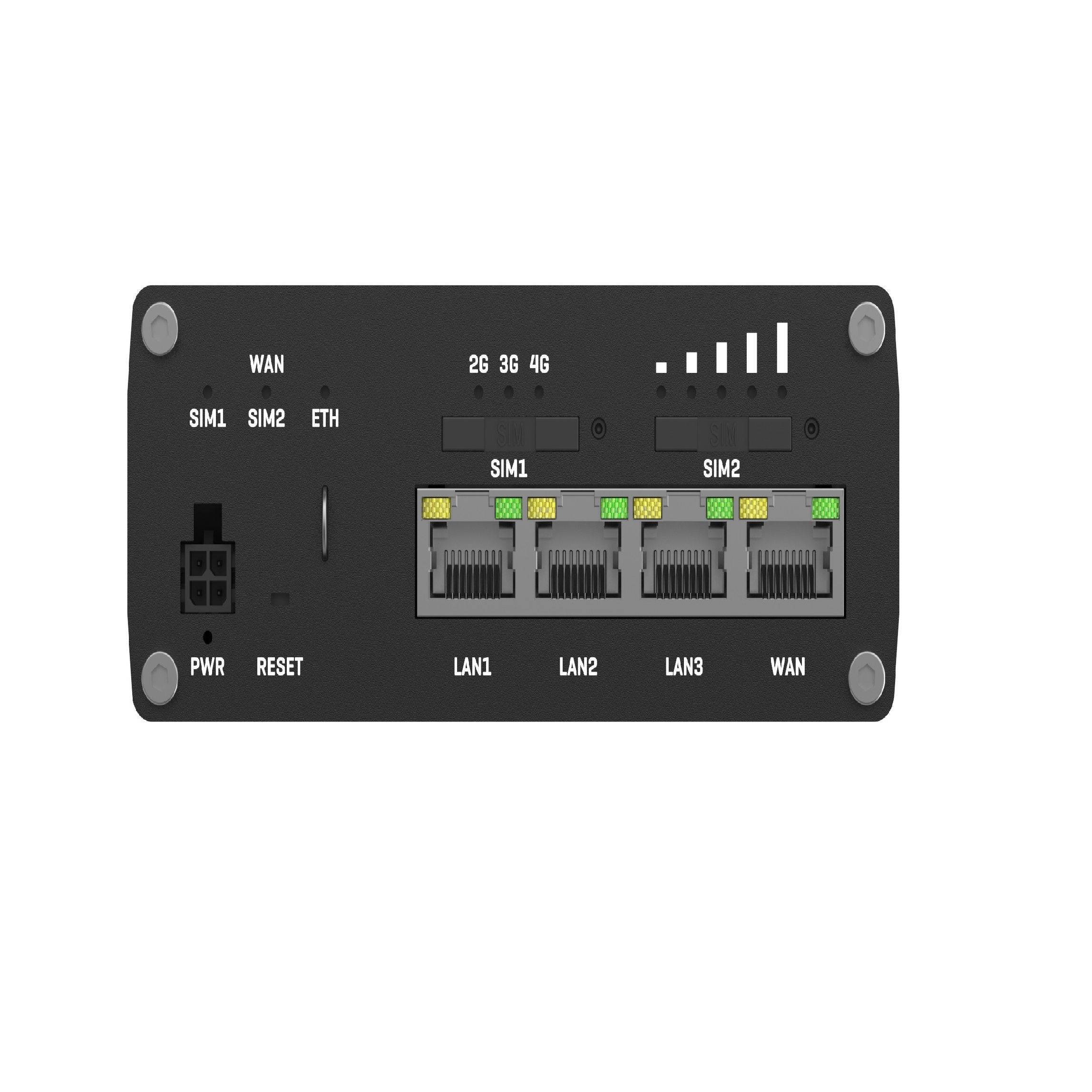

4 x RJ45 ports, 10/100/1000 Mbps

1 x Digital Input, 1 x Digital Output on 4-pin power connector

3 x WAN type LEDs, 3 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

1 x 4-pin power connector

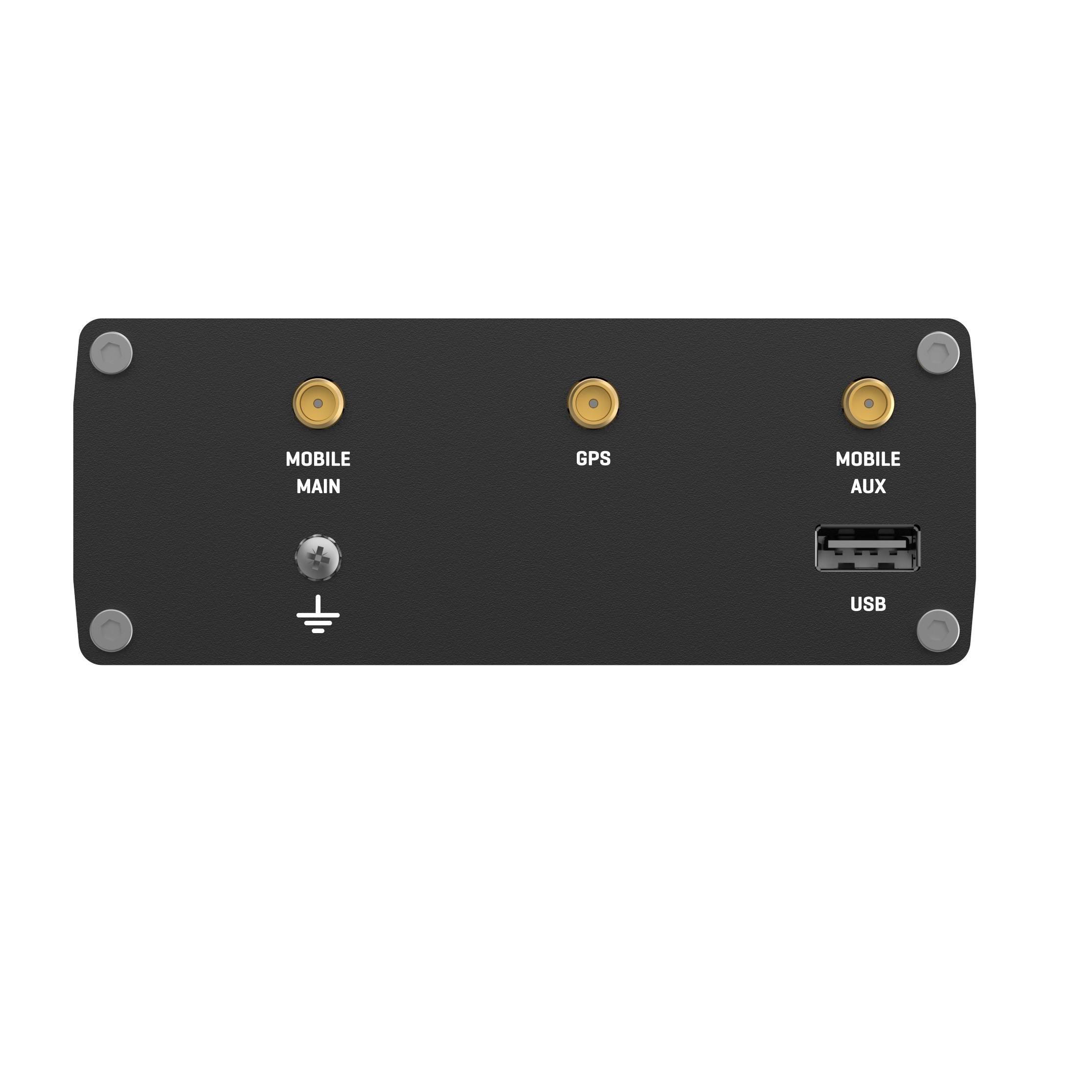

2 x SMA for Mobile, 1 x SMA for GNSS

1 x USB A port for external devices

Reboot/User default reset/Factory reset button

1 x Grounding screw

Anodized aluminum housing and panels

115 x 44.2 x 95.1 mm

457 g

DIN rail, wall mount, flat surface (all require additional kit)

-40 °C to 75 °C

10% to 90% non-condensing

IP30

CE, UKCA, RCM, CB

EN 55032:2015 + A11:2020 + A1:2020

N 55035:2017 + A11:2020

EN 61000-3-3:2013 + A1:2019 + A2:2021

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-4-2: 2009

EN IEC 61000-4-3: 2020

EN 61000-4-4: 2012

EN 61000-4-5:2014+A1:2017

EN 61000-4-5:2014+A1:2017

EN 61000-4-6: 2014

EN IEC 61000-4-11: 2020

EN 301 908-1 V13.1.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.1.1

EN 303 413 V1.2.1

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

RCM: AS/NZS 62368.1:2022

CB: IEC62368-1:2018
