34 182,00 ₴

Артикул:

978

Розгортайте 5G там, де розмір та вартість мають значення. RUTM20 — це надкомпактний глобальний 5G-маршрутизатор, розроблений для рішень IoT та IIoT. Використовуйте всесвітнє підключення за допомогою глобального 5G-модему Telit. Оптимізуйте розгортання за допомогою PoE, що забезпечує подачу живлення по одному кабелю. Завдяки інтегрованій eSIM ви можете керувати перемиканням операторів у великих масштабах, усуваючи дорогі візити на об'єкт. RUTM20 ідеально підходить для рішень з обмеженим простором, таких як POS, відеоспостереження та транспорт.

Комплектація:

Маршрутизатор RUTM20

Блок живлення 18 Вт

4 x 5G прямі компактні мобільні антени (SMA чоловічі)

2 x пряма компактна Wi-Fi антена RP-SMA (RP-SMA чоловічий)

Кабель Ethernet (1,5 м)

Комплект SIM-адаптера

1 х шестигранний ключ

QSG (Короткий посібник з початку роботи)

Пакувальна коробка

Stuff

Зображення

Техничні характеристики

Mobile

Mobile module

5G Sub-6Ghz SA/NSA 2.5/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2);

4G (LTE) – LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL;

3G – 42 Mbps DL, 5.7Mbps UL

3GPP Release

Release 16

eSIM

Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

SIM switch

2 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail

Status

IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS

SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD

Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list

Operator block/allow list (by country or separate operators)

Multiple PDN

Possibility to use different PDNs for multiple network access and services

Band management

Band lock, Used band status display

SIM idle protection service

Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

SIM PIN code management

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN

Auto APN

Bridge

Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

Router assigns its mobile WAN IP address to another device on LAN

Framed routing

Framed routing: support an IP network behind 5G UE

Wireless

Wireless mode

802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

WiFi security

WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSID

SSID stealth mode and access control based on MAC address

Wi-Fi users

Up to 150 simultaneous connections

Wireless Connectivity Features

Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter

Allowlist, blocklist

Wireless QR code generator

Once scanned, a user will automatically enter your network without needing to input login information

TravelMate

Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

WAN

1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN

1 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall

Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page

View all your Firewall statistics, rules, and rule counters

Port management

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology

Visual representation of your network, showing which devices are connected to which other devices

Hotspot

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Hotspot 2.0

Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks

DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS

Supported >77 service providers, others can be configured manually

DNS over HTTPS

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing

Balance Internet traffic over multiple WAN connections

SSHFS

Possibility to mount remote file system via SSH protocol

VRF support

Initial virtual routing and forwarding (VRF) support

Traffic Management

Real-time monitoring, wireless signal charts, traffic usage history

Security

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN

Port and tag-based VLAN separation

Mobile quota control

Custom data limits for SIM card

WEB filter

Block list for blocking out unwanted websites, allow list for specifying allowed sites only

Access control

Flexible access control of SSH, Web interface, CLI and Telnet

TPM

Identification and authentication module, TPM 2.0 standard

Certificate Manager

Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

802.1x

Port-based network access control client and server

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE

GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP

SSTP client instance support

ZeroTier

ZeroTier VPN client support

WireGuard

WireGuard VPN client and server support

Tinc

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Tailscale

Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

BacNET

Supported modes

Router

Supported connection types

TCP

Configuration options

Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

OPC UA

Supported modes

Client, Server

Supported connection types

TCP

MODBUS

Supported modes

Server, Client

Supported connection types

TCP

Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Protocol

HTTP(S), MQTT, Azure MQTT

Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modes

Station, Outstation

Supported connection

TCP

DLMS/COSEM

DLMS Support

DLMS - standard protocol for utility meter data exchange

Supported modes

Client

Supported connection types

TCP

API

Teltonika Networks Web API (beta) support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTA

Firmware update from server, automatic notification

SSH

SSH (v1, v2)

SMS

SMS status, SMS configuration

Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

Receive email message status alerts of various services

TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT

MQTT Broker, MQTT publisher

SNMP

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC

Management API over HTTP/HTTPS

MODBUS

MODBUS TCP status/control

RMS

Teltonika Remote Management System (RMS)

IoT Platforms

ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of Things

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT Hub

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT Core

Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPU

MediaTek, Dual-Core, 880 MHz, MIPS1004Kc

RAM

256 MB, DDR3

FLASH storage

16 MB serial NOR flash, 256 MB serial NAND flash

Firmware/Configuration

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA

Update FW

RMS

Update FW/configuration for multiple devices at once

Keep settings

Update FW without losing current configuration

Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating system

RutOS (OpenWrt based Linux OS)

Supported languages

Busybox shell, Lua, C, C++

Development tools

SDK package with build environment provided

GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package Manager

The Package Manager is a service used to install additional software on the device

POE IN

PoE IN ports

1 x PoE In (WAN port)

PoE standards

802.3af/at (WAN port), Alternative A and B

PoE (passive)

Passive PoE (WAN port), Mode A and B, 18–50 VDC

POE OUT

PoE OUT ports

1 x PoE Out (LAN port)

PoE standards

802.3af/at (LAN port), Alternative A

PoE Max Power per Port (at PSE)

30 W Max, please refer to the information below

Active PoE output Power input

802.3at/802.3af 4-pin connector > 44V

Passive PoE input voltage > 44V

802.3af Active PoE 802.3at used for power input

N/A Active PoE 802.3af used for power input

Power

Connector

4-pin industrial DC power socket

Input voltage range

9 - 50 VDC, reverse polarity protection, voltage surge/transient protection

PoE (passive)

Passive PoE (WAN port), Mode A and B, 18–50 VDC

Power consumption

Idle: < 4.5W, Max: < 8.5 W

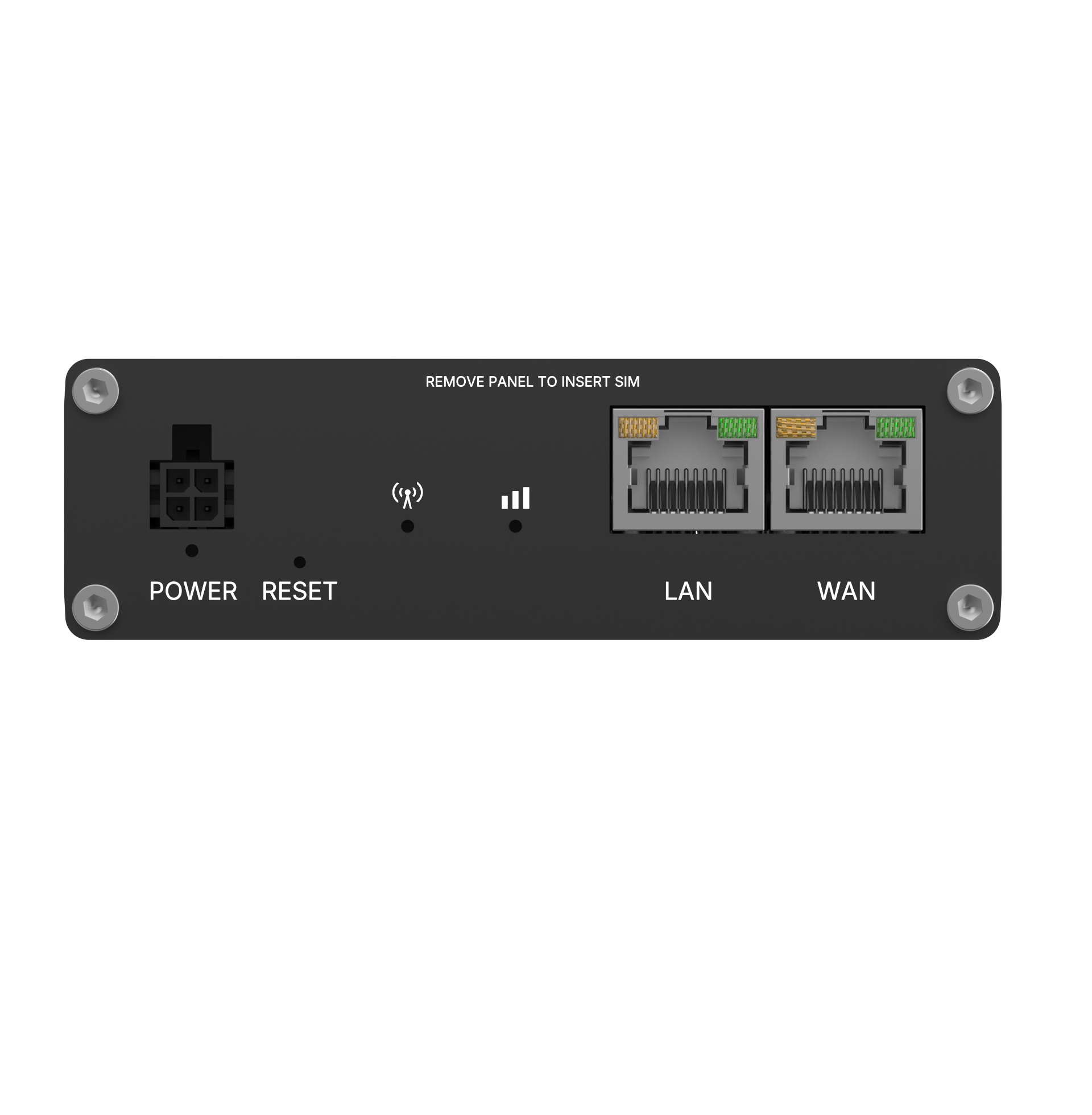

Physical Interfaces

Ethernet

2 x RJ45 ports, 10/100/1000 Mbps

Status LEDs

1 x Mobile connection type(RGB), 1 x Mobile connection strength(RGB), 4 x LAN status, 1 x Power

SIM

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, internal SIM holder

Power

1 x 4-pin power connector

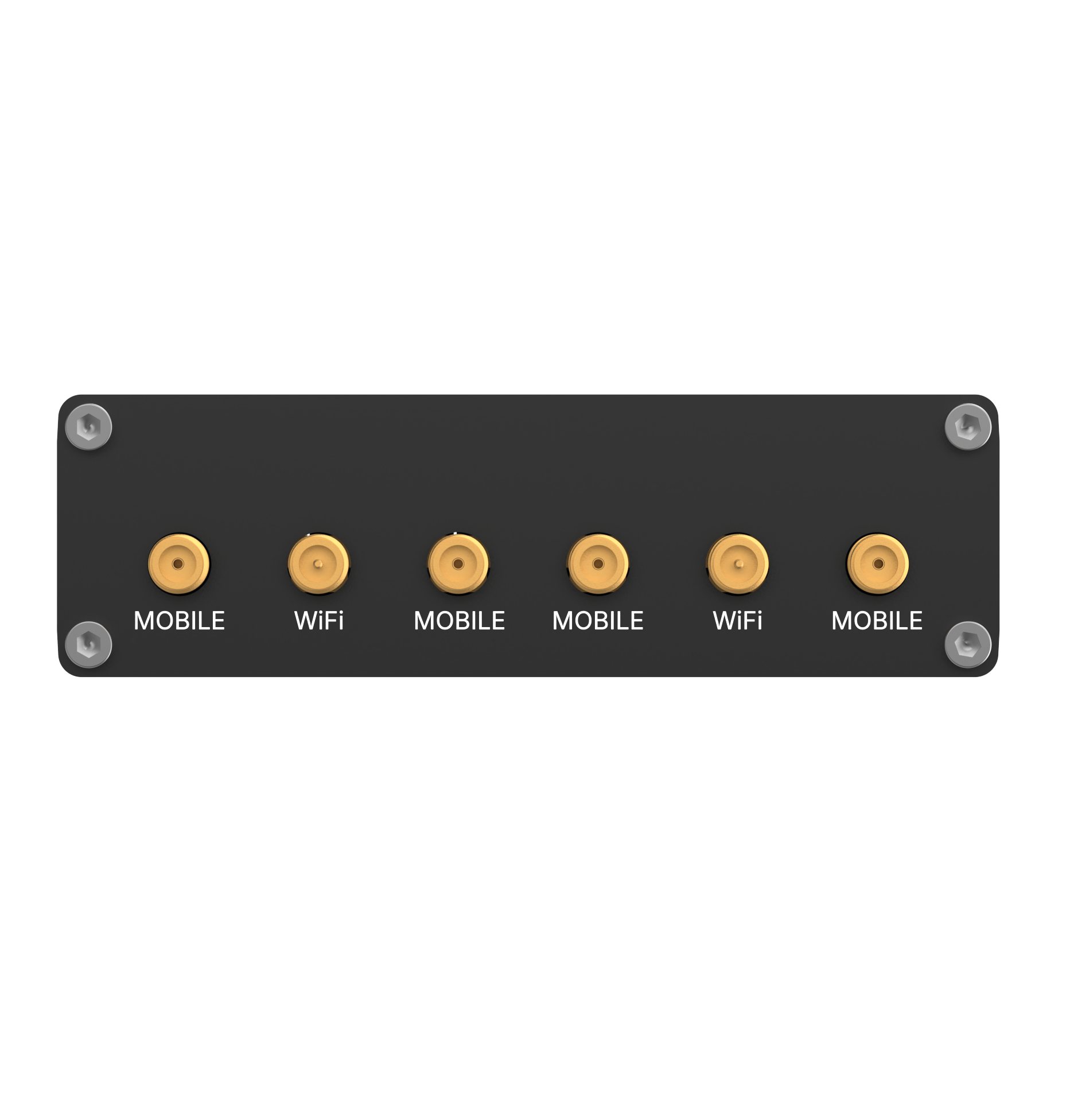

Antennas

4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi

Reset

Reboot/User default reset/Factory reset button

Physical Specification

Casing material

Anodized aluminium housing and panels

Dimensions (W x H x D)

100 x 30 x 93.7 mm

Weight

319 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals

Regulatory

CE, UKCA, CB, RCM, FCC, WEEE, PTCRB

Operator

AT&T

Завантаження

Додаткові файли:

datasheet_rutm20_1.06.pdf

rutm20_flyer_2026_-v1.1.pdf
