MOBILE |
|
|
Mobile module |
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
|
SIM switch |
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
|
Status |
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
|
SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
|
USSD |
Supports sending and reading Unstructured Supplementary Service Data messages |
|
Black/White list |
Operator black/white list |
|
Band management |
Band lock, Used band status display |
|
APN |
Auto APN |
|
Bridge |
Direct connection (bridge) between mobile ISP and device on LAN |
|
Passthrough |
Router assigns its mobile WAN IP address to another device on LAN |
|
WIRELESS |
|
|
Wireless mode |
IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
|
WiFi security |
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
|
SSID/ESSID |
ESSID stealth mode |
|
WiFi users |
Up to 100 simultaneous connections |
|
Wireless Hotspot |
Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
|
Wireless Connectivity Features |
Fast roaming (802.11r), Relayd |
|
ETHERNET |
|
|
WAN |
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
LAN |
3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
NETWORK |
|
|
Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
|
VoIP passthrough support |
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Connection monitoring |
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall |
Port forward, traffic rules, custom rules |
|
DHCP |
Static and dynamic IP allocation, DHCP Relay |
|
QoS / Smart Queue Management (SQM) |
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS |
Supported >25 service providers, others can be configured manually |
|
Network backup |
WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
|
Load balancing |
Balance Internet traffic over multiple WAN connections |
|
SSHFS |
Possibility to mount remote file system via SSH protocol |
|
SECURITY |
|
|
Authentication |
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
|
Firewall |
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
VLAN |
Port and tag-based VLAN separation |
|
Mobile quota control |
Mobile data limit, customizable period, start time, warning limit, phone number |
|
WEB filter |
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
|
Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN |
|
|
OpenVPN |
Multiple clients and a server can run simultaneously, 27 encryption methods |
|
OpenVPN Encryption |
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
|
IPsec |
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
|
GRE |
GRE tunnel, GRE tunnel over IPsec support |
|
PPTP, L2TP |
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
|
Stunnel |
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
|
DMVPN |
Method of building scalable IPsec VPNs |
|
SSTP |
SSTP client instance support |
|
ZeroTier |
ZeroTier VPN client support |
|
WireGuard |
WireGuard VPN client and server support |
|
Tinc |
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support. |
|
BACNET |
|
|
Supported connection types |
RS485, TCP |
|
Supported modes |
Router |
|
OPC UA |
|
|
Supported modes |
Client, Server (planned) |
|
Supported connection types |
TCP |
|
DNP3 |
|
|
Supported modes |
TCP Station, Outstation |
|
Supported connection types |
RS232, RS485, TCP, USB |
|
MODBUS |
|
|
Supported modes |
Server, Client |
|
Supported connection types |
RS232, RS485, TCP, USB |
|
Custom registers |
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality |
|
Supported data formats |
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
|
DATA TO SERVER |
|
|
Protocol |
HTTP(S), MQTT, Azure MQTT, Kinesis |
|
MODBUS MQTT GATEWAY |
|
|
Modbus MQTT Gateway |
Allows sending commands and receiving data from MODBUS Master through MQTT broker |
|
MONITORING & MANAGEMENT |
|
|
WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
|
FOTA |
Firmware update from server, automatic notification |
|
SSH |
SSH (v1, v2) |
|
SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
|
Call |
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off |
|
TR-069 |
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
|
MQTT |
MQTT Broker, MQTT publisher |
|
SNMP |
SNMP (v1, v2, v3), SNMP Trap |
|
JSON-RPC |
Management API over HTTP/HTTPS |
|
MODBUS |
MODBUS TCP status/control |
|
RMS |
Teltonika Remote Management System (RMS) |
|
IOT PLATFORMS |
|
|
Cloud of Things |
Allows monitoring of: Device data, Mobile data, Network info, Availability |
|
ThingWorx |
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
|
Cumulocity |
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
|
Azure IoT Hub |
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
|
SYSTEM CHARACTERISTICS |
|
|
CPU |
Mediatek, 580 MHz, MIPS 24Kc |
|
RAM |
128 MB, DDR2 |
|
FLASH storage |
16 MB, SPI Flash |
|
FIRMWARE / CONFIGURATION |
|
|
WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup |
|
FOTA |
Update FW |
|
RMS |
Update FW/configuration for multiple devices at once |
|
Keep settings |
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION |
|
|
Operating system |
RutOS (OpenWrt based Linux OS) |
|
Supported languages |
Busybox shell, Lua, C, C++, and Python, Java in Package manager |
|
Development tools |
SDK package with build environment provided |
|
LOCATION TRACKING |
|
|
GNSS |
GPS, GLONASS, BeiDou, Galileo and QZSS |
|
Coordinates |
GNSS coordinates via WebUI, SMS, TAVL, RMS |
|
NMEA |
NMEA 0183 |
|
NTRIP |
NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
|
Server software |
Supported server software TAVL, RMS |
|
Geofencing |
Configurable multiple geofence zones |
|
SERIAL |
|
|
RS232 |
DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate |
|
RS485 |
RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate |
|
Serial functions |
Console, Serial over IP, Modem |
|
USB |
|
|
Data rate |
USB 2.0 |
|
Applications |
Samba share, USB-to-serial |
|
External devices |
Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
|
Storage formats |
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
|
INPUT / OUTPUT |
|
|
Input |
1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high) |
|
Output |
1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector) |
|
Events |
Email, RMS, SMS |
|
I/O juggler |
Allows to set certain I/O conditions to initiate event |
|
POWER |
|
|
Connector |
4-pin industrial DC power socket |
|
Input voltage range |
9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
|
PoE (passive) |
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC |
|
Power consumption |
< 2 W idle, < 7 W Max |
|

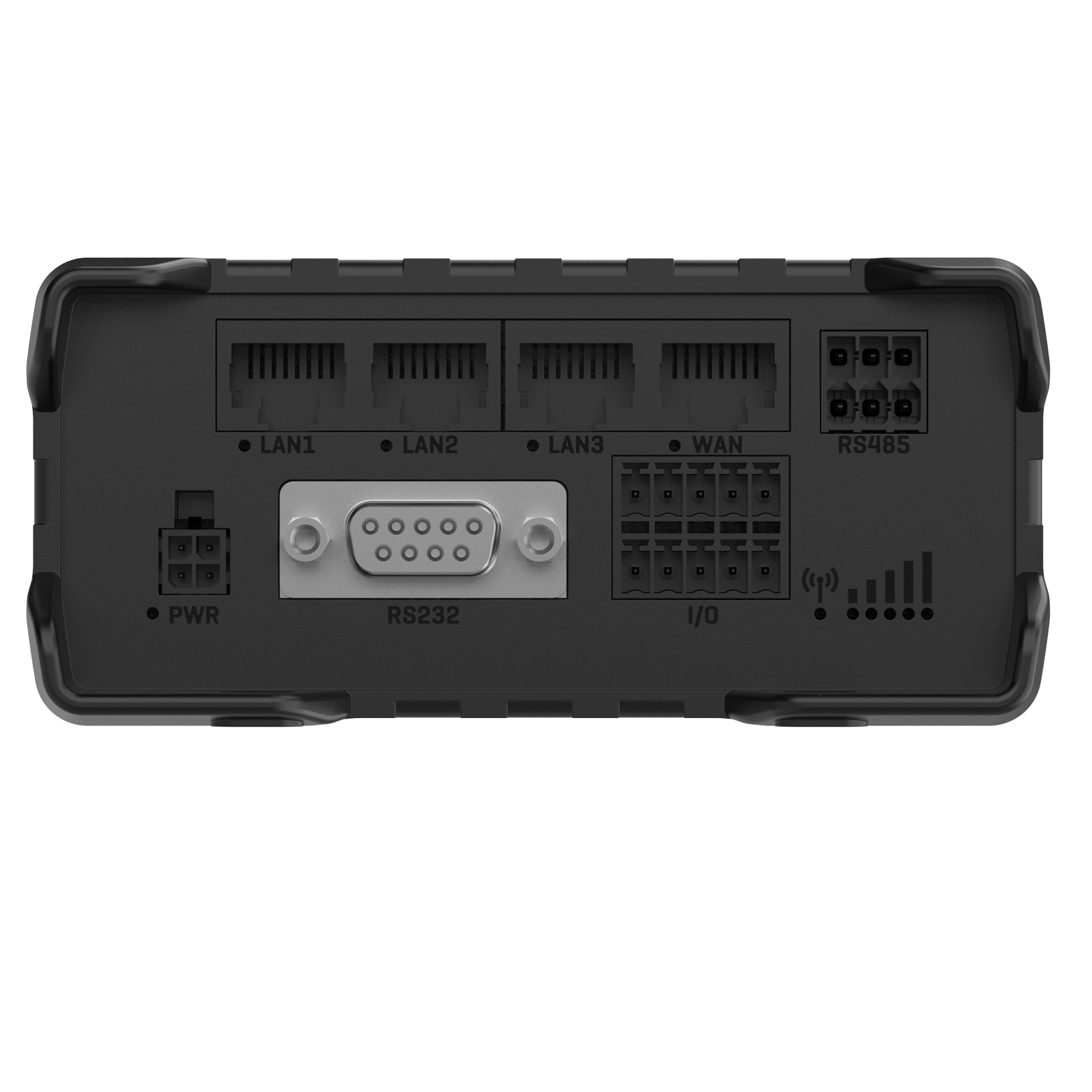

PHYSICAL INTERFACES |
|
|
Ethernet |
4 x RJ45 ports, 10/100 Mbps |
|
I/O’s |
2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector |
|
Status LEDs |
1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
|
SIM |
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
|
Power |
1 x 4-pin power connector |
|
Input/output |
1 x 10-pin industrial socket for inputs/outputs |
|

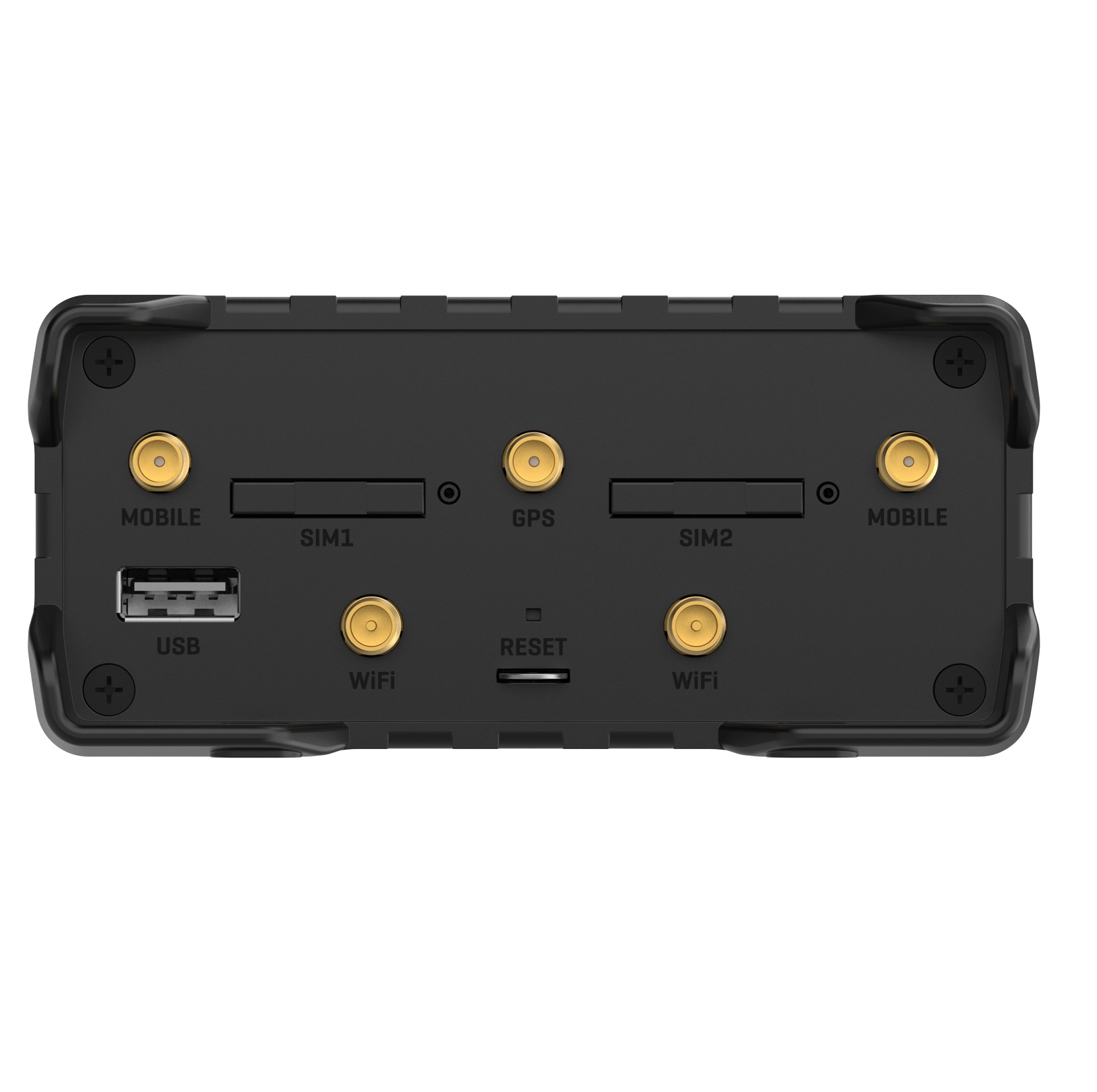

Antennas |
2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS |
|
USB |
1 x USB A port for external devices |
|
RS232 |
1 x DB9 socket |
|
RS485 |
1 x 6-pin industrial socket |
|
Reset |
Reboot/User default reset/Factory reset button |
|
PHYSICAL SPECIFICATION |
|
|
Casing material |
Aluminium housing, plastic panels |
|
Dimensions (W x H x D) |
109.5 x 50 x 100 mm |
|
Weight |
295 g |
|
Mounting options |
DIN rail (can be mounted on two sides), flat surface placement |
|
OPERATING ENVIRONMENT |
|
|
Operating temperature |
-40 °C to 75 °C |
|
Operating humidity |
10% to 90% non-condensing |
|
Ingress Protection Rating |
IP30 |
|
REGULATORY & TYPE APPROVALS |
|
|
Regulatory |
CE, UKCA, RCM, CB, E-mark |
|
EMI IMMUNITY |
|
|
Standards |
EN 55032:2015+A11:2020, EN 55035. :2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.0, EN 301 489-52 V1.2.1, |
|
ESD |
EN 61000-4-2:2009 |
|
EFT |
EN 61000-4-4:2012 |
|
Surge Immunity (AC Mains Power Port) |
EN 61000-4-5:2014+A1:2017 |
|
CS |
EN 61000-4-6:2014 |
|
DIP |
EN IEC 61000-4-11:2020 |
|
Radiated Immunity |
EN IEC 61000-4-3:2020 |
|
Standards |
CE: EN 62311 CB: IEC 62368-1:2018 |
|
RF |
|
|
Standards |
EN 301 908-1; EN 301 908-2; EN 301 908-13; EN 300 328; |
